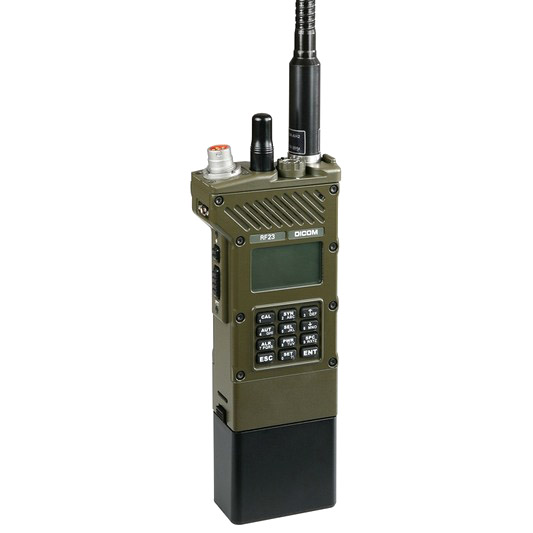

PN (RN): 2300.100.40

a) in all modes of operation
• automatic transceiver self-test after power-up with failure indication on the display (BITE);
• programming with operational data using PK23 fill gun set;
• emergency erasing of operational data in fixed frequency channels, including encryption unit codes and FH network data, including TRANSEC and COMSEC;
• tone dialing (1000 ± 200) Hz, in VHF III band (1750 ± 25) Hz;
• acoustic signaling turning on/off by the transceiver operator;
• enabling of the display and keypad illumination;
• display contrast setting;
• battery pack voltage signaling;
• transmitter power signaling on the display;
• "receive-only" operation with suppressed transmission;
• operation mode with increased modulator sensitivity and reduced AF power;
• automatic transition from increased power to nominal power in case of supply voltage drop;
• service information displaying - firmware;

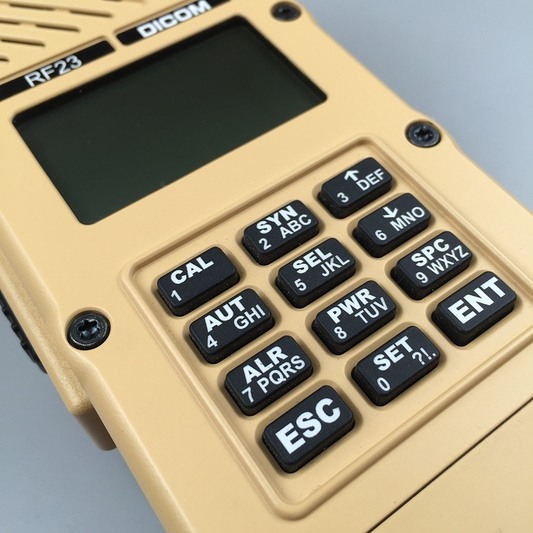

• simple control;
• displaying of position, time and speed on LCD with updates from GPS;

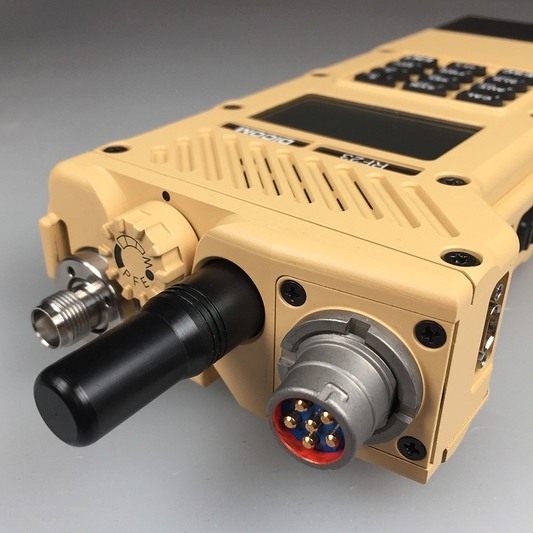

• AF connector configuration;
• AF connector status monitoring;
• remote transceiver control via PRC20 protocol;
• easy dismantling of the GPS antenna and connecting of external active or passive antenna via SMA connector;

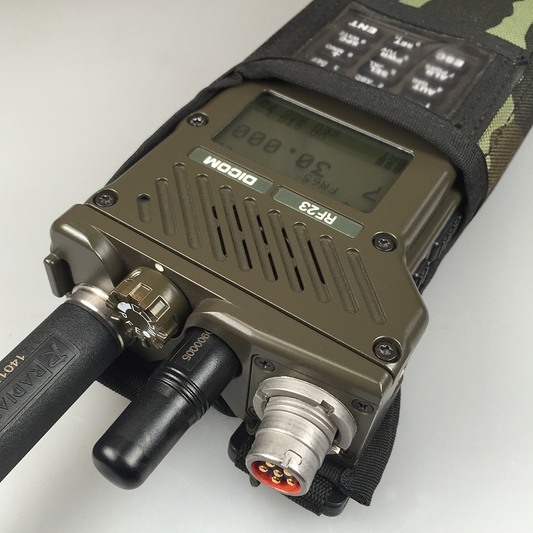

• can be used with modular carrier system bags.

b) when operating at fixed frequency
• up to 10 preset channels from the entire frequency range, number of preset channels decreased when occupied with FH networks;
• simplex or semi-duplex operation;
• 150 Hz subtone squelch or signal squelch (only signal squelch in VHF II);
• voice operation via built-in encryption unit compatible with RF13, RF20, RF2350, RF2050 in VHF I;
• transmission and reception of short coded messages - FLASH with opposite transceiver identification;
• programming of radio channel parameters from the keypad;
• preset channel scanning;
• data transmission according to MIL-STD-188-220 (NET);
• operation frequency setting in 6.25 kHz, 8.33 kHz, 25 kHz or 1 MHz step;
• bandwidth for 16 kbit/s digital transmission of voice and data according to STANAG 4204, 2nd edition.

c) in FH mode
• up to 6 preset networks;
• operation in the 30.000 MHz to 87.975 MHz frequency band;
• secure TRANSEC operation and encrypted COMSEC operation;
• simplex or semi-duplex operation with frequency hopping;
• compatible with RF20, RF2350, RF2050 transceivers;
• selectable frequency hopping operating mode - FH, DFF, FCS, MIX and IFF with rapid transition to HLC/HLG or HLA;
• communication on the channel with a continuous carrier;
• establishing of communication with transceivers in fixed frequency operation mode through HLC/HLG monitoring;
• 121.500 MHz (HLA) frequency monitoring and transition to HLA with suppressed transmission;
• late net entry with synchronization request;
• master transceiver switching according to the network situation;
• transmission of warning message to all network participants;
• mutual authentication;
• selective communication of MASTER with a selected SLAVE transceiver;
• send and receive short text messages with a maximum length of 156 characters;
• preparation, saving and reading of up to 10 short text messages;
• transmission over notification (BREAK IN) by all transceivers;
• INTERLEAVING switching off for close-to-the-limits communication;
• data transmission at adjustable rates – 7100 bit/s, 4800 bit/s and 2400 bit/s (P2P);
• data transmission according to MIL-STD-188-220 (NET);
• G-track, sending position reports via radio channel;
• own position sending by SMS.

Frequency range 25.0000 MHz to 145.9875 MHz
Nominal input output impedance 50 Ω
Frequency ranges
HF 25.000 MHz to 29.975 MHz
VHF I 30.000 MHz to 108.000 MHz
VHF II 117.975 MHz to 140.000 MHz
VHF III 140.025 MHz to 145.9875 MHz
Modulation type
HF FM
VHF I FM
VHF II AM
VHF III FM
Channel spacing
HF 25 kHz
VHF I 25 kHz; 12.5 kHz; 6.25 kHz
VHF II 25 kHz; 8.33 kHz
VHF III 25 kHz; 12.5 kHz
Number of operation channels at 25 kHz channel spacing
HF 200
VHF I 3121
VHF II 882
VHF III 239
Preset channels 10
Number of channels monitored in all special operation modes 3 (two selectable, third fixed – 121.500 MHz)
Maximum number of programmable networks 6
Nominal supply voltage 7.4 V
Limit supply voltage 6.5 V to 9.5 V
Frequency band with special modes of operation 30.000 MHz to 87.975 MHz
Types of special operation modes
FH frequency hopping
DFF digital fixed frequency
FCS free channel search
MIX mixed operation FH and FCS
IFF iso-fixed frequency
Time to initial synchronization max. 5 s
Synchronization hold with transceiver off and battery pack attached min. 48 h
Synchronization hold with battery pack disconnected min. 50 s
Hopping rate 100 hops/s
Transceiver power consumption
- transmission (nominal power) 1.6 A
- transmission (reduced power) 0.65 A
- transmission (increased power) 3.2 A
- reception 0.25 A
- stand-by 0.18 A
Operating time (transmission [2 W] : reception : stand-by = 1 : 1 : 10)
- with LP1302 min. 14 h
- with LP20 min. 26 h
TRANSMITTER PARAMETERS
Nominal power of FM transmitter 2 W
Nominal power of AM transmitter 1 W
Reduced power of FM transmitter 0.2 W
Reduced power of AM transmitter 0.1 W
Increased power of FM transmitter 5 W
Harmonics suppression min. 40 dB
Spurious suppression at mistuning > 25 kHz min. 60 dB
RECEIVER PARAMETERS
Sensitivity 0.5 μV at 12 dB SINAD
Non-linear distortion factor 10 %
Loudspeaker output power 200 mW/8 Ω
Audio bandwidth
narrow band 300 Hz to 3000 Hz
wide band 10 Hz to 11000 Hz
MECHANICAL PROPERTIES AND RESISTANCE
Resistance to immersion to 1 m
Operating temperature range -40 °C to +70 °C
Transceiver dimensions with the battery pack LP1302 97 mm x 217 mm x 44 mm [w x h x d]
Battery pack dimensions
LP1302 79 mm x 61 mm x 44 mm [w x h x d]
LP20 76 mm x 95 mm x 45 mm [w x h x d]
Transceiver weight max. 0.85 kg
Battery pack weight
LP1302 max. 0.3 kg
LP20 max. 0.45 kg
GPS RECEIVER PARAMETERS
Service L1-SPS
Number of channels 50
RANGES
Average ranges in medium undulating terrain at nominal power in FF and open voice operation 5 km with 1.1 m long tape antenna
