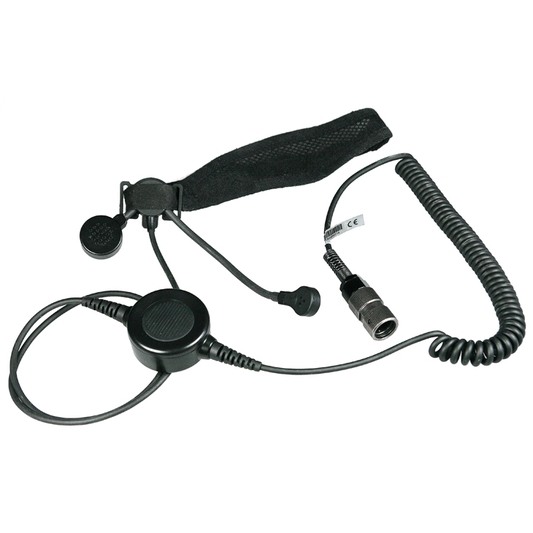

Light-weight headband headset consists of a central housing unit supporting a microphone and earphone, are mounted on flexible boom arms which can be rotated and instantly configured to accommodates both left side or right side users. The headset can be connected to RF23 or RF2350 transceivers with U-229/U type connector.

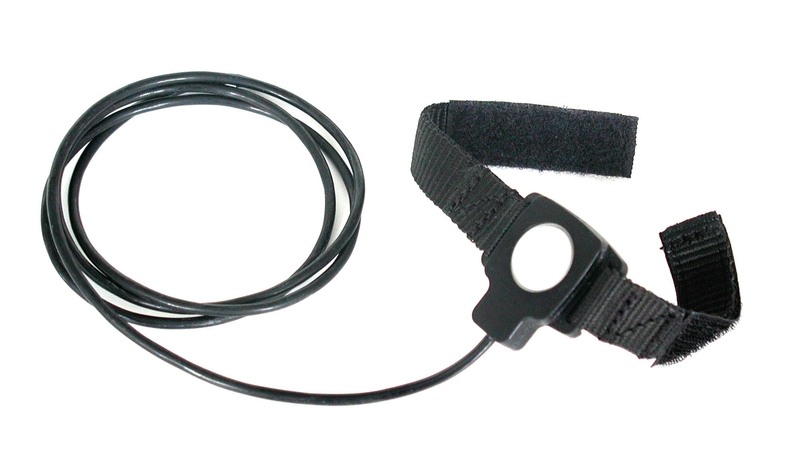

Headset 2328.100.11 includes the extra PTT key with velcro to fix on hand or weapon.

PN (RN): 2328.100.11, 2328.100.12

• dynamic noise-canceling microphone,
• IP67 waterproof,
• MIL-STD military standards,
• big PTT,
• headband type.


Type magnetodynamic
Impedance 300 Ω ± 15 %
Frequency range 200 Hz to 4000 Hz
Sensitivity 85 ± 3 dB/mW at 1 kHz
Rated input power 20 mW
Maximum input power 100 mW
Type magnetodynamic
Impedance max. 150 Ω at 1 kHz
Frequency range 200 Hz to 4000 Hz
Operating temperature -55 °C to +70 °C
Humidity ˂ 96 %
Atmospheric pressure 86 kPa–106 kPa
