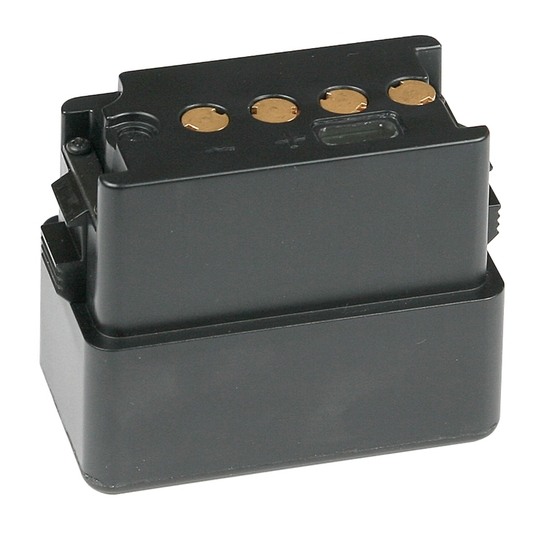

LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
PN (RN): 7029.100.02
Diagnostic circuits use two-wire bus communication between the battery pack and the charger to display the battery pack charging parameters and manufacturing parameters on the charger display (NU1302).
| Nominal voltage | 7.4 V |
|---|---|
| Nominal capacity | 3.6 Ah |
| Charging (from NU1302, NM1302 chargers) | 5 hours |
| Operating temperature range | –30 ˚C to +60 ˚C |
| Dimensions | W 79 mm x H 61 mm x D 44 mm |
| Weight | max. 0.3 kg |
NM1302 - Mobile charger set
PN (RN): 7028.000.01
KČM: 0299012011694
NSN: 6130160048120
Set consists of NM1302 mobile charger and accessories. NM1302 charger is designed to charge BP1301 (NiCd) and LP1302 (LiIon) battery...
PC20 - Small mains charger set
PN (RN): 7046.000.11
SL20 - Solar charger
PN (RN): 7047.100.01
The SL20 solar charger is designed to charge LiIon battery packs with type designations LP1302 and LP20 for RF20 and...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NM1302 | Mobile charger set | 7028.000.01 | 0299012011694 | 6130160048120 |
| NU1302 | Universal charger set N/A | 7027.000.01 | 0299012011670 | 6130160048118 |
| PC20 | Small mains charger set | 7046.000.11 | ||
| SL20 | Solar charger | 7047.100.01 |
