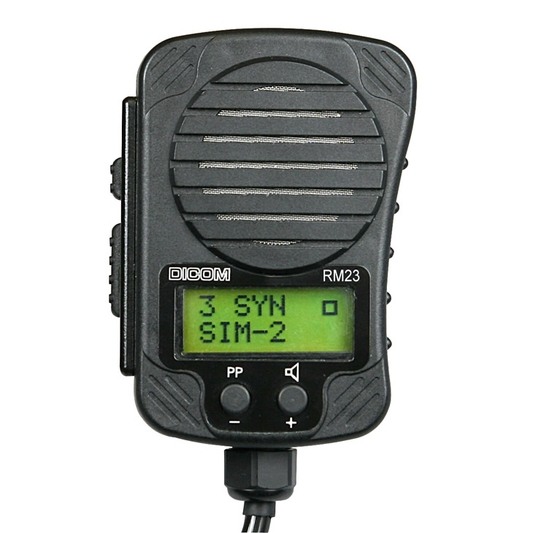

The handset with control is intended to control RF23 transceiver. Besides the basic functions of radio channel monitoring, transceiver keying and voice modulation, it features channel selection and step volume change. The device includes a two-row LCD display (2 x 8 characters), which displays channel number, frequency and network name. It also shows other incoming events, such as received FLASH, ALERT and short text messages. The RM23 is equipped with two keys on the side - PTT and tone signaling. The front side features an LCD display and two function keys underneath it. The speaker grid is located above the display. RM23 is linked with the transceiver with a spiral cord that comes out of the bottom section and is terminated with a standard audio-frequency six-pin connector according to MIL-DTL-55116. The connector is connected to the appropriate transceiver AF connector. The RM23 design makes it waterproof to 1 m and resistant to falls.

PN (RN): 2313.100.40
Type of communication protocol PRC20
Parameters of asynchronous communication line asynchronous, 57600 Bd
Maximum connection cable length 2 m
Modulation voltage to the transceiver 10 mV
Speaker impedance 8 Ω
Tone signaling frequency 1000 Hz ± 200 Hz
Interconnect connector type 6 pins, U229
Weight 0.3 kg
Operating temperature -30 °C to +70 °C
Storage temperature -40 °C to +70 °C
