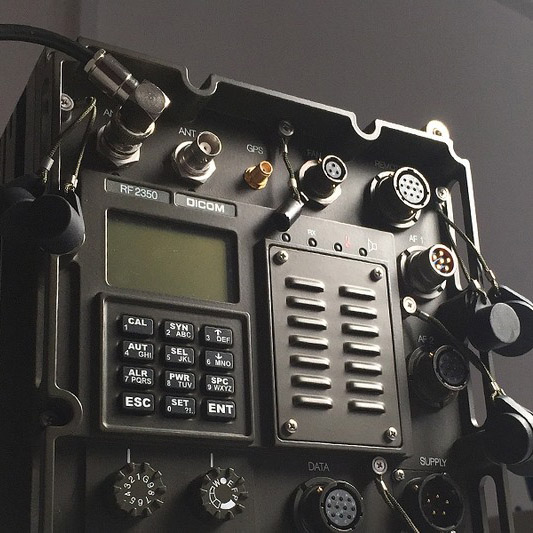

PN (RN): 2310.100.40

a) in all operation modes
• automatic self-test after power-up, with failure indication on the transceiver display (BITE);
• operational data programming from external units - PK20 or PK23;
• simplex or semi-duplex operation;
• emergency erasure of operation data on fixed frequency channels, including encryption unit codes and information for FH networks including TRANSEC and COMSEC keys;
• acoustic signaling switching on/off by transceiver operator;
• transmission of tone calling (1000 ± 200) Hz, in VHF III band (1750 ± 25) Hz;

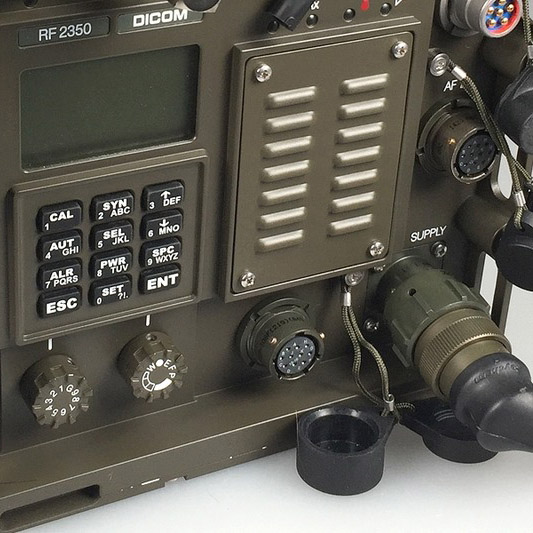

• display and keypad backlight;
• adjustable display contrast;
• synchronous data transmission;
• transmission power signaling on the display, transmission signaling by LED on the top panel;
• operation channel signal reception signaling by a LED on the transceiver panel;
• transmitter overheat signaling LED on the transceiver panel with automatic switching to lower power output;
• signaling of active mode with co-site filter (version 2310.100.41);
• optional external cooling box for improved cooling efficiency;
• "reception only" mode, with transmission disabled;
• whisper mode with increased microphone sensitivity and decreased audio volume;
• loud received signal monitoring with volume regulation and LED signaling;
• transceiver remote control via RC20 remote control unit and PRC20 protocol;

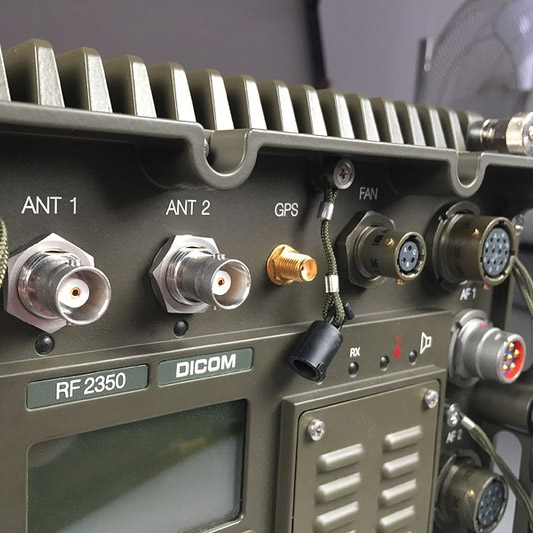

• connector configuration for connecting one or two antennas;
• displaying of servicing information – firmware;
• position, velocity and time display on the LCD with external GPS antenna connected;
• easy to control.

b) in fixed frequency mode
• max. 10 presets from the entire frequency range 25 MHz to 145.9875 MHz, fewer preset channels if occupied by FH networks;
• 150 Hz sub-tone squelch or signal squelch (only signal in VHF II);
• voice operation via internal encryption unit compatible with RF13, RF20, RF1301 and RF2050;
• transmission and reception of short encrypted messages – FLASH, with the opposite transceiver identification;
• channel parameter programming from keypad;
• preset channel scanning;
• data transmission according to MIL-STD-188-220 compatible with modem MD13.1;
• operation frequency setting in 6.25 kHz, 8.33 kHz, 25 kHz or 1 MHz steps;
• transmission band for digital voice and data transmission 16 kbit/s according to STANAG 4204, edition 2.

c) in FH operation
• max. 6 network presets;
• operation in frequency range 30.000 MHz to 87.975 MHz;
• secure operation TRANSEC and secret operation COMSEC;
• simplex or semi-duplex operation with frequency hopping;
• selectable frequency hopping operation mode – FH, DFF, FCS and MIX with quick transition to HLC, HLG or HLA;
• communication on the channel with a continuous carrier;
• iso-fixed frequency operation mode without HLC, HLG and HLA monitoring;
• establishing of connection with fixed frequency transceivers through HLC and HLG monitoring;
• 121.500 MHz (HLA) frequency monitoring and transition to HLA with transmission disabled;
• late net entry with synchronization request;
• master transceiver switching depending on the network condition;
• transmission of warning message to all network participants;
• all transceivers authentication request;
• MASTER transceiver selective communication with a selected slave transceiver;
• transmission and reception of short text message, maximum 156 characters;
• preparation, saving and reading of up to 10 short text messages;
• transmission over notification (BREAK IN) by all transceivers;
• INTERLEAVING switching off for close-to-the-limits communication;
• data transmission at adjustable rates – 7100 bit/s, 4800 bit/s and 2400 bit/s (P2P);
• data transmission according to MIL-STD-188-220 (NET);
• G-track, sending position reports via radio channel;
• own position sending by SMS.

Frequency range 25.0000 MHz to 145.9875 MHz
Nominal input/output impedance 50 Ω
Frequency ranges
HF 25.000 MHz to 29.975 MHz
VHF I 30.000 MHz to 108.000 MHz
VHF II 117.975 MHz to 140.000 MHz
VHF III 140.0250 MHz to 145.9875 MHz
Type of modulation
HF F3E (FM)
VHF I F3E (FM)
VHF II A3E (AM)
VHF III F3E (FM)
Channel spacing
HF 25 kHz
VHF I 25 kHz; 12.5 kHz; 6.25 kHz
VHF II 25 kHz; 8.33 kHz
VHF III 25 kHz; 12.5 kHz
Number of operation channels with 25 kHz spacing
HF 200
VHF I 3121
VHF II 882
VHF III 239
Number of preset channels 10
Number of frequency hopping channels max. 6
RECEIVER PARAMETERS
Sensitivity
(25-29.975) MHz 0.6 μV
(30-90) MHz with co-site filter/without co-site filter 0.7 μV/0.5 μV
(90.00625-108) MHz 0.5 μV
(117.975-140) MHz 0.5 μV
(140.025-145.9875) MHz 0.5 μV
Dynamic two-signal selectivity for adjacent channel min. 57 dB
Suppression of intermediate frequencies min. 80 dB
Suppression of mirror frequencies min. 60 dB
Suppression of spurious receptions for detuning > 10 % from operating frequency min. 70 dB
TRANSMITTER PARAMETERS
Nominal output power FM 50 W
Nominal output power AM 15 W
Reduced output power FM 5 W
Reduced output power AM 2 W
Harmonic suppression min. 60 dB
Spurious suppression at ∆f > 25 kHz min. 70 dB
Time of continuous operation at +50 °C at duty cycle reception : transmission = 1 : 1 without limit
Average ranges in medium undulated terrain at nominal power FF mode (with antenna 2.6 m) 25 km
POWER SUPPLY (according to MIL-STD-1275B)
Nominal supply voltage 12 VDC or 24 VDC
Limit supply voltage 10 VDC to 33 VDC
Current consumption
• Transmission - nominal output power
at 12 V max. 25 A
at 24 V max. 12 A
• Reception max. 1.25 A (12 V)
AUDIO FREQUENCY OUTPUTS/INPUTS PARAMETERS
Effectively transmitted frequency band
narrow band 300 Hz to 3000 Hz
wide band 10 Hz to 11000 Hz
Audio frequency levels of AF connector outputs
AF1 connector
narrow band adjustable level/1 kΩ
wide band constant level 1000 mV/600 Ω
AF2 connector
narrow band adjustable level min. 200 mW/8 Ω
narrow band constant level min. 775 mV/600 Ω
wide band constant level 1000 mV/600 Ω

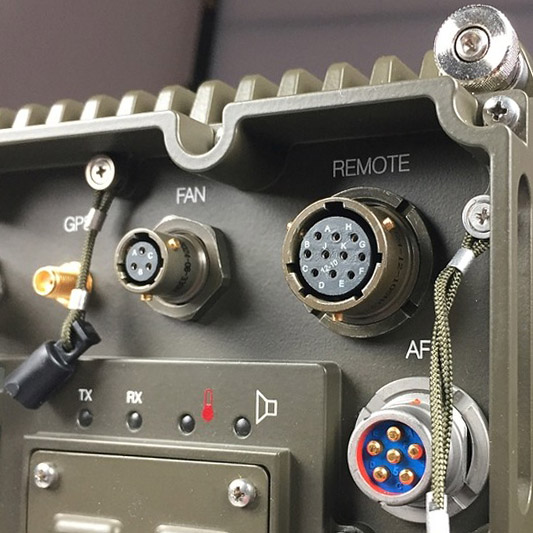

REMOTE connector
narrow band constant level min. 775 mV/600 Ω
Audio frequency levels of AF connector inputs
AF1 connector
narrow band 3 mV/∆f = 4 kHz
wide band 400 mV/∆f = 4 kHz
AF2 connector
narrow band (NARROW/LINE) 100 mV/∆f = 4 kHz
wide band 400 mV/∆f = 4 kHz
REMOTE connector
narrow band (LINE) 100 mV/∆f = 4 kHz
Built-in speaker sound pressure min. 85 dB at maximum volume
Non-linear distortion factor max. 10 %
GPS RECEIVER PARAMETERS
Received frequency L1 (1575.42 MHz)
Coding C/A code
Number of channels 50
Horizontal accuracy 2.5 m CEP
Velocity precision ± 0.1 m/s
Time to accuracy acquisition – cold start 40 s
GPS antenna connector type SMA
GPS ANTENNA PARAMETERS
Supply voltage for the preamplifier 3.3 V/25 mA
SPECIAL OPERATION MODES PARAMETERS
Operating frequency range in FH modes 30.000 MHz to 87.975 MHz
Number of monitored frequencies in FH modes 3 (two programmable, third 121.5 MHz)
Frequency hopping modes
FH frequency hopping
DFF digital fixed frequency
FCS free channel search
MIX mixed operation FH and FCS
IFF iso-fixed frequency
Time to initial synchronization max. 5 s
Time of autonomous synchronization holding 48 h
Synchronization hold when disconnected from power supply 50 s
Minimum number of operation frequencies for FH operation 1
Hopping rate 100 hops/s
MECHANICAL PROPERTIES AND RESISTANCE
Dimensions [w x h x d]
• without cooling block 202 mm x 210 mm x 186 mm
• with cooling block 202 mm x 231 mm x 186 mm
Weight 8.5 kg
Operating temperatures -40 °C to +70 °C
Mechanical and climatic resistance according to MIL-STD-810E
EMC according to MIL-STD-461E
Power requirements according to MIL-STD-1275B
