GPA24 - Satellite navigation antenna

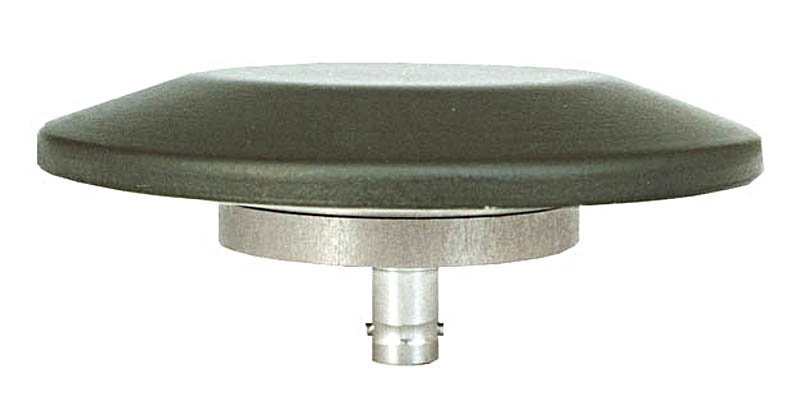

Flat GPA24 satellite navigation antenna is designed for the reception of GPS signal. The antenna is suitable for vehicles, antenna masts or portable tripods. It contains a low-noise preamplifier which makes it possible to connect the antenna using a long cable. Its high climatic and mechanical resistance ensures operation in the most demanding environments, including military application.
PN (RN): 2042.100.50
KCM: 0064681101250
NSN: 5985160018111
| Radiator | microstrip with circular right-handed polarization |
|---|---|
| Nominal frequency | 1575.42 MHz |
| Nominal impedance | 50 Ω |
| VSWR | max. 3 |
| Power supply | 3.3 V to 12 V |
| Output connector | BNC |
| Preamplifier gain | > 18 dB |
| Operating temperature range | -30 °C to +60 °C |
| Dimensions | diameter 96 mm x 42 mm |
| Weight | 0.2 kg |
| GPA24, GPA25 operating instructions | 2042.010.02 |
|---|
GPA24 - Satellite navigation antenna set
PN (RN): 2042.000.50
KČM: 0064681101320
NSN: 5985160026238
Set consists of GPA24 antenna and documentation. For basic operation no other components are required. Flat GPA24 satellite navigation antenna...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| GPA24 | Satellite navigation antenna set | 2042.000.50 | 0064681101320 | 5985160026238 |
