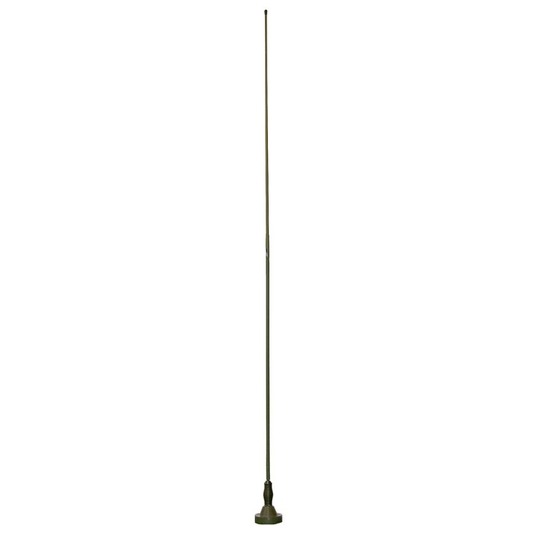

2.6 m VHF vehicle antenna
The antenna is designed for fixed installation on all types of wheeled and tracked vehicles. It has omnidirectional radiation pattern with vertical polarization. The antenna can be used with all RF13 mobile transceiver sets and RF2050 transceivers in (30–108) MHz band, i.e. the VHF I band. The antenna consists of a base and a two-element radiator. The radiation features and mechanical design make it possible to use the antenna as a direct replacement for previous antenna types 2036.100.56 or 2036.100.67.
PN (RN): 2036.100.23, 2036.100.24
Note
2036.100.23 - installation method according to UK/NATO standard.
2036.100.24 - installation method according to US standard.
| Frequency range | 30 MHz to 108 MHz |
|---|---|
| VSWR | max. 3.5 |
| Nominal impedance | 50 Ω |
| Power rating | max. 100 W |
| Gain | -4 dBi to +1 dBi |
| Antenna height | 2.6 m |
| Maximum weight | 2.7 kg |
| Connector | BNC (female) |
| Length of disassembled radiator | 1.27 m |
| Antenna base height | 272 mm |
| Operating temperature | -55 °C to +55 °C |
| Surface finish | polyurethane lacquer |
| Color | olive |
| Installation method | |
| Standard UK/NATO | 3 or 6 screws M6 on 111 mm circle |
| Standard US | 4 screws M10 on 115 mm circle |
