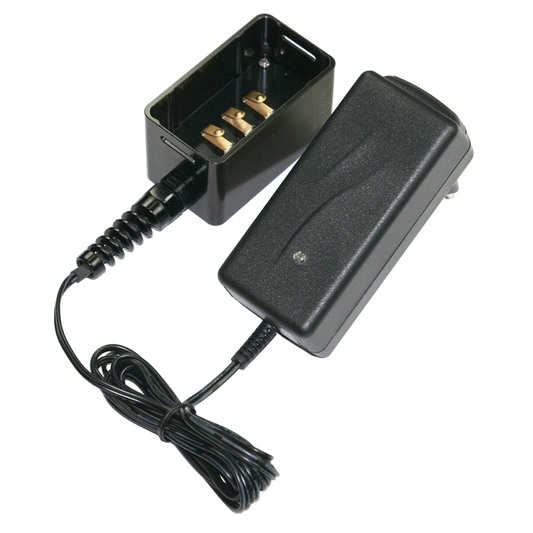

PC20 - Small mains charger
PC20 small mains charger charges a single LP1302, LP20 (LiIon) battery pack.
PN (RN): 7046.100.11
| Power supply voltage | mains 90 V to 264 V/50 Hz to 60 Hz |
|---|---|
| Current consumption | max. 0.3 A |
| Charging current | max. 1500 mA |
| Charging voltage | max. 8.5 V |
| Charging time | |
| LP1302 | max. 5 hours |
| LP20 | max. 8 hours |
| Number of connected battery packs | 1 |
| Operation temperature range during charging | 0 °C to +43 °C |
| Termination of charging when charging current drops below | max. 125 mA |
| Installation dimensions of the charger | |
| Mains segment | |
| height | max. 110 mm |
| width | max. 50 mm |
| depth | max. 81 mm |
| Charging position | |
| height | max. 75 mm |
| width | max. 43 mm |
| depth | max. 68 mm |
| Charger weight | max. 0.28 kg |
| PC20 operating instructions | 7046.010.12 |
|---|
PC20 - Small mains charger set
PN (RN): 7046.000.11
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| PC20 | Small mains charger set | 7046.000.11 |
LP1302 - Battery pack
PN (RN): 7029.100.02
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
LP20 - Battery pack
PN (RN): 7029.100.11, 7029.100.13
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of six LiIon cells with a protective diagnostic circuit. The diagnostic circuit is equipped with a battery charging status display.
- nominal capacity 6.7 Ah
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| LP1302 | Battery pack | 7029.100.02 | ||
| LP20 | Battery pack | 7029.100.11, 7029.100.13 |
