MA1302 - Vehicle support

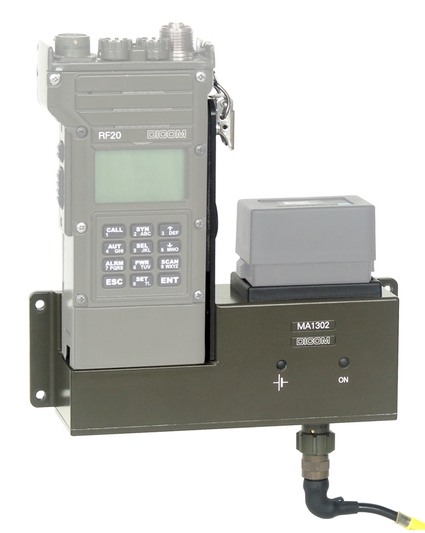

MA1302 vehicle support supplies #RF20# transceivers with power and charges battery packs for this transceiver in vehicles with 12 V or 27 V board mains (compatible with MIL-STD-1275B). When removed with the battery pack from the holder, the transceiver becomes portable and capable of normal operation.
| Supply voltage from vehicle board mains | 12 V or 27 V |
|---|---|
| Supply voltage | 10 V to 33 V |
| Current consumption from vehicle board mains | max. 4 A |
| Current consumption in stand-by mode | max. 3 mA |
| Output voltage | max. 9 V |
| Supply current into transceiver | min. 3.5 A |
| Charging current | |
| BP1301 | 150 mA |
| LP1302, LP20 | max. 1.8 A |
| Charging voltage for BP1301 | max. 9 V |
| Charging voltage for LP1302, LP20 | max. 8.4 V |
| Battery pack temperature for charging | 0 °C to 43 °C |
| Operating temperatures | -40 °C to +70 °C |
| Dimensions | W 215 mm x H 200 mm x D 60 mm |
| Weight | max. 1 kg |
| MA1302 operating instructions | 7018.010.22 |
|---|
MA1302 - Vehicle support set
Set consists of MA1302 and accessories. MA1302 vehicle support supplies RF20 transceivers with power and charges battery packs for this...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| MA1302 | Vehicle support set | 7018.000.26 |
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
LP20 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of six LiIon cells with a protective diagnostic circuit. The diagnostic circuit is equipped with a battery charging status display.
- nominal capacity 6.7 Ah
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| LP1302 | Battery pack | 7029.100.02 | ||
| LP20 | Battery pack | 7029.100.11, 7029.100.13 |
