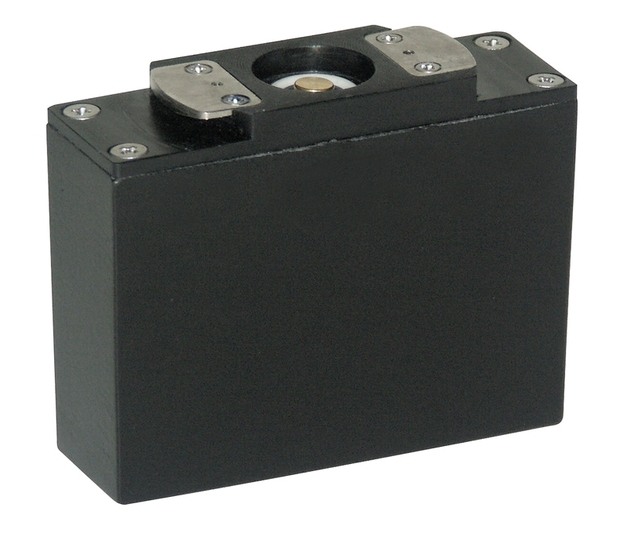

BP200 - Battery pack
Power supply for #PR20# personal role radio. Bayonet lock ensures quick replacement operability. The battery pack contains parallel combination of two LiIon cells and protection/communication circuits. The segment display informs the user of the battery status. The battery pack is charged with SC200 stationary charger and MC200 mobile charger.
PN (RN): 7040.100.01
KCM: 0294006101100
NSN: 6130160057172
| Nominal voltage | 3.7 V |
|---|---|
| Capacity | 4.2 Ah |
| Maximum load current | 1 A |
| Charging time (SC200, MC200 chargers) | max. 360 minutes |
| Communication | HDQ |
| Protection provided by enclosure | waterproof |
| Operating temperatures | -30 °C to +50 °C |
| Dimensions | W 78 mm x H 63 mm x D 27 mm |
| Weight | 0.22 kg |
MC200 - Mobile charger set
PN (RN): 7033.000.01
KČM: 0294006101085
NSN: 6130160057170
Set consists of MC200 mobile charger and accessories. MC200 mobile charger charges up to six BP200 battery packs in vehicles...
SC200 - Stationary charger set
PN (RN): 7032.000.01
KČM: 0294006101061
NSN: 6130160057168
Set consists of SC200 stationary charger and accessories. The charger charges and discharges up to eight BP200 battery packs used...
PC200 - Small mains charger set
PN (RN): 7035.000.01
Set consists of PC200 small mains charger and documentation. For basic operation no other components are required. The small mains...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| MC200 | Mobile charger set | 7033.000.01 | 0294006101085 | 6130160057170 |
| SC200 | Stationary charger set | 7032.000.01 | 0294006101061 | 6130160057168 |
| PC200 | Small mains charger set | 7035.000.01 |
