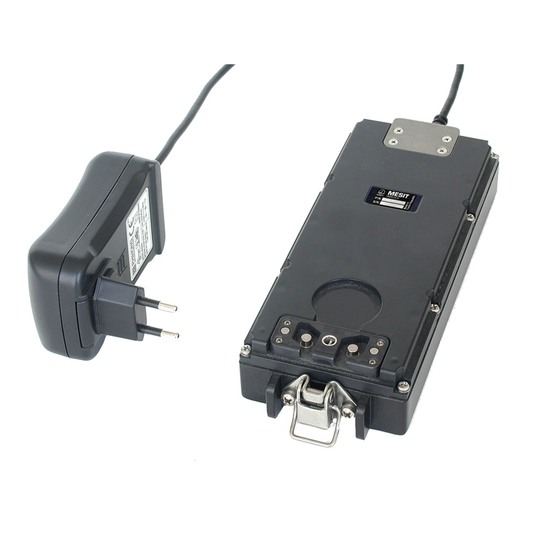

SZ13.2 - Power supply
SZ13.2 power supply is designed to supply one RF13 VHF transceiver. It consists of an AC/DC mains adapter and the adapter for connecting of the transceiver.
PN (RN): 7026.100.01
KCM: 0299012009435
NSN: 6130160033899
| Input mains voltage | (90 to 264) V, (47 to 63) Hz |
|---|---|
| Output DC voltage | 12 V |
| Maximum output current | 1.67 A |
| Operating temperatures | (0 to +40) °C |
| AC/DC adapter dimensions | W 65 mm x H 77 mm x D 100 mm |
| Adapter dimensions | W 82 mm x H 42 mm x D 202 mm |
| AC/DC adapter weight | max. 0.3 kg |
| Mains cable length | min. 1.6 m |
| SZ13.2 operating instructions | 7026.010.02 |
|---|
SZ13.2 - Power supply set
PN (RN): 7026.000.02
KČM: 0299012010785
NSN: 6130160037708
Set consists of SZ13.2 power supply and documentation. For basic operation no other components are required. SZ13.2 is...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| SZ13.2 | Power supply set | 7026.000.02 | 0299012010785 | 6130160037708 |
