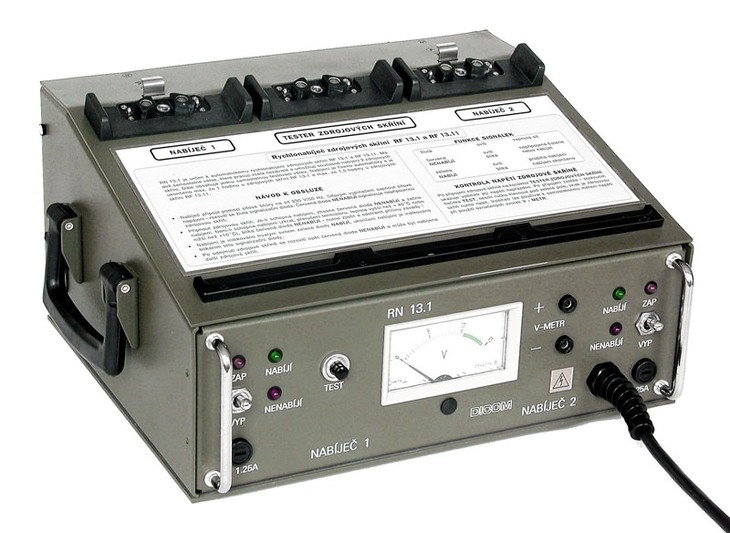

RN13.1 - Quick battery charger
The quick charger is used for quick charging of one or two battery packs RF13.1. Simultaneously, it can control and test other battery packs. Charged battery packs are fastened to the charger by means of level closures. The charger can be carried with the charged batteries.
PN (RN): 7001.100.12
KCM: 0068600200055
NSN: 6130160041837
| Power supply voltage | mains 230 V/50 Hz |
|---|---|
| Charging time | 60 minutes |
| Charging current | (0.2 to 6) A, processor controlled in accordance with charging characteristics |
| Charging control | in accordance with voltage drop, battery temperature max. +45 °C and time 60 min |
| Battery pack test | - measuring open-circuit voltage |
| - measuring voltage at 4 A load after pressing the TEST button | |
| DC voltmeter range | 0 V to 15 V |
| Protection provided by enclosure | IP 30 |
| Operating temperature range | -20 °C to +50 °C |
| Dimensions | W 340 mm x H 180 mm x D 286 mm |
| Weight | 10.5 kg |
| RN13.1 operating instructions | 7001.010.12 |
|---|
RN13.1 - Quick battery charger set
PN (RN): 7001.000.12
KČM: 0299012009776
NSN: 6130160034833
Set consists of RN13.1 quick charger and documentation. For basic operation no other components are required. The quick charger...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RN13.1 | Quick battery charger set | 7001.000.12 | 0299012009776 | 6130160034833 |
RF13.1 - Rechargeable battery pack set
PN (RN): 7000.000.02
Set consists of RF13.1 battery pack and documentation. For basic operation no other components are required. RF13.1 is...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13.1 | Rechargeable battery pack set | 7000.000.02 |
