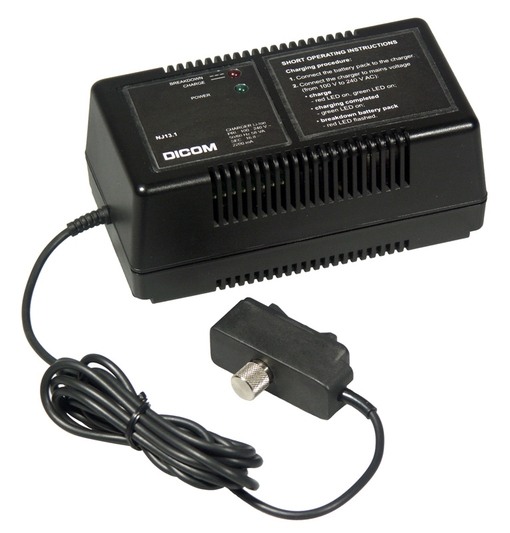

NJ13.1 - Small mains charger
The small mains charger is used to charge a single RF13.13 (LiIon) battery pack.
PN (RN): 7025.100.12
| Supply voltage | mains 100 V to 240 V |
|---|---|
| Current consumption from mains | |
| • at supply voltage 100 V | max. 400 mA |
| • at supply voltage 240 V | max. 200 mA |
| Charging current | max. 2500 mA |
| Termination of charging | |
| • when the charging current reaches | 0 mA to 50 mA |
| • after time expiration | max. 22 hours |
| Operating temperatures for charging | 0 °C to +35 °C |
| Dimensions [w x h x d] | 85 mm x 65 mm x 155 mm |
| Weight (including power cable) | 0.7 kg |
| NJ13.1 operating instructions | 7025.010.12 |
|---|
NJ13.1 - Small mains charger set
PN (RN): 7025.000.12
Set consists of NJ13.1 small mains charger and accessories. The charger is used to charge a single RF13.13...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NJ13.1 | Small mains charger set | 7025.000.12 |
RF13.13 - Rechargeable battery pack
PN (RN): 7000.100.22
Power supply for RF13 portable transceiver. It contains a set of LiIon batteries in serial-parallel connection with protective and diagnostic...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13.13 | Rechargeable battery pack | 7000.100.22 |
