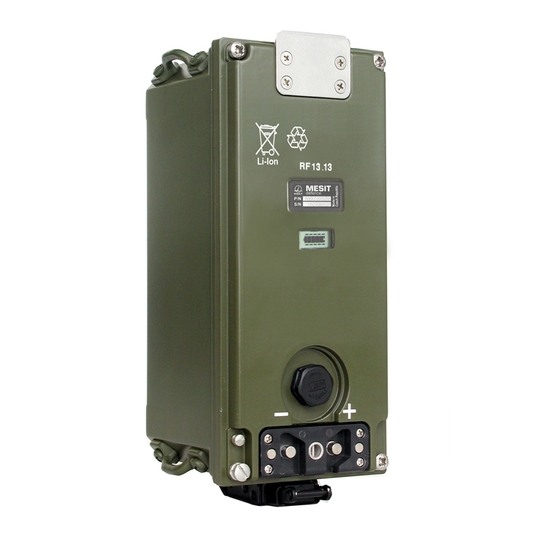

Power supply for RF13 portable transceiver. It contains a set of LiIon batteries in serial-parallel connection with protective and diagnostic circuits and a display showing their capacity. Protective circuits protect the battery pack cells and ensure compatibility with RF13.1 battery pack chargers. Diagnostic circuits use two-wire bus communication between the battery pack and the charger to display the battery pack charging parameters on the charger display.

PN (RN): 7000.100.22
Nominal voltage 14.4 V
Capacity (C) 9 Ah
Charging time (from RN13.1, RM13) max. 5 h
Charging time (from NU13) max. 7 h
Operating temperatures -30 °C to +60 °C
Charging temperatures 0 °C to +50 °C
Dimensions [w x h x d] 196 mm x 80 mm x 84 mm
Weight 2 kg
