DICOM®RF20 radio system
A self-contained set of functionally intertwined handheld and mobile transceivers RF23, RF20, RF2350 and RF2050, providing reliable (TRANSEC) and safe (COMSEC) communication under very demanding conditions. The transceivers operate in several frequency bands (multiband), serve several purposes (multirole) and work in several operation modes (multimode).

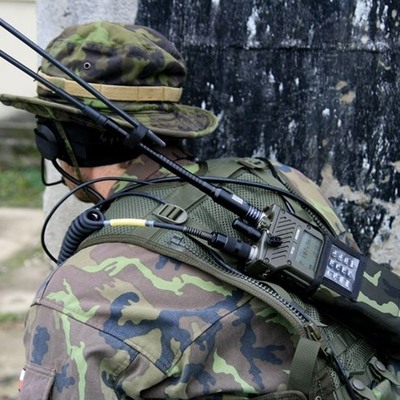

RF23 and RF20 handheld EPM transceivers are designed for communication on the tactical level in all military branches. Used mainly where there is a need for high quality communication with lightweight equipment. RF2350 and RF2050 mobile EPM transceivers are designed for installation in all track and wheel vehicles.
The transceivers follow up the RF13 line and the previously manufactured RF1301 transceiver, guaranteeing operational and logistical compatibility.
RF23 - EPM handheld transceiver nemá být vidět
Ruční vícepásmová EPM radiostanice se zvýšenou odolností proti radioelektronickému boji je určená pro spojení na taktickém stupni velení u všech druhů vojsk.
- integrovaný přijímač GPS
- audio příslušenství s konektorem U-229/U
RF23 - EPM handheld transceiver
An EPM handheld multiband transceiver with enhanced resistance to radio-electronic warfare designed for tactical command level for all military branches.
- integrated GPS receiver
- audio accessories with U-229/U connector
RF20 - EPM handheld transceiver
RF20 EPM handheld multiband transceiver with improved resistance to electronic warfare for use at the tactical command levels for all kinds of military units.
- standard range of functionalities typical for handheld transceivers of RF20 system
RF1302S - Ruční EPM radiostanice
Ruční EPM radiostanice RF1302S (kategorie CCI/KKP) je víceúčelová VKV radiostanice pro spojení na taktickém stupni velení u všech druhů vojsk.
- Certifikovaná Národním bezpečnostním úřadem pro přenos utajovaných informací do stupně utajení Důvěrné (NATO CONFIDENTIAL).
RF2305 - Manpack radio
Manpack transceiver based on RF23 handheld transceiver with exteneded range
- range up to 15 km
- maintains the complete RF23 radio functionality
RF2350 - N/A
RF2350 mobile multiband transceiver with increased resistance against radio-electronic warfare is intended for installation in all tracked and wheeled vehicles and base stations.
RF2350 - EPM mobile transceiver
RF2350 mobile multiband transceiver with increased resistance against radio-electronic warfare is intended for installation in all tracked and wheeled vehicles and base stations.
- audio accessories U-229/U or MESIT defence
- integrated GPS receiver
- without co-site filter
RF2350 - N/A
Mobilní vícepásmová radiostanice RF2350 se zvýšenou odolností proti radioelektronickému. Určena pro zástavbu do všech pásových a kolových vozidel a na základnová stanoviště.
- audio příslušenství U-229/U nebo DICOM
- integrovaný přijímač GPS
- co-site filtr
RF2350 - EPM mobile transceiver
RF2350 mobile multiband transceiver with increased resistance against radio-electronic warfare is intended for installation in all tracked and wheeled vehicles and base stations.
- audio accessories U-229/U or MESIT defence
- integrated GPS receiver
- with co-site filter
RF2050 - EPM mobile transceiver
RF2050 mobile multiband transceiver with increased resistance against radio-electronic warfare is intended for installation in all tracked and wheeled vehicles.
- standard range of functionalities typical for mobile transceivers of RF20 system
- without co-site filter
RF2050 - EPM mobile transceiver
RF2050 mobile multiband transceiver with increased resistance against radio-electronic warfare is intended for installation in all tracked and wheeled vehicles.
- standard range of functionalities typical for mobile transceivers of RF20 system
- with co-site filter
RF13250E - N/A
Mobilní vícepásmová radiostanice RF13250E se zvýšenou odolností proti radioelektronickému boji je určena pro zástavbu do všech pásových a kolových vozidel.
- rozsah vlastností typický pro mobilní radiostanice systému RF20
- co-site filtr
RF13250S - Mobilní EPM radiostanice
Mobilní vícepásmová radiostanice RF13250 se zvýšenou odolností proti radioelektronickému boji je určena pro zástavbu do všech pásových a kolových vozidel.
- certifikováno pro přenos utajovaných informací do stupně DŮVĚRNÉ (NATO CONFIDENTIAL)
RX2050 - EPM receiver
RX2050 receiver is a device intended for installation in mobile devices.
- reception of RF signals from transceivers operating in 25 MHz to 146 MHz fixed frequency band
- in frequency hopping mode fully compatible with RF20 system transceivers
- integrated co-site filter
RX2050 - N/A
Přijímač RX2050 je zařízení určené pro zástavbu do mobilních prostředků.
- příjem signálů na pevném kmitočtu v pásmu 25 MHz až 146 MHz
- v módu se skokovou změnou kmitočtu kompatibilní s radiostanicemi systému RF20
- integrovaný co-site filtr
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF23 | EPM handheld transceiver nemá být vidět | 2300.100.40 | ||
| RF23 | EPM handheld transceiver | 2300.100.40 | ||
| RF20 | EPM handheld transceiver | 2300.100.10 | ||
| RF1302S | Ruční EPM radiostanice | 2300.100.50 | ||
| RF2305 | Manpack radio | 2302.100.01 | ||
| RF2350 | N/A | 2310.100.40 | ||
| RF2350 | EPM mobile transceiver | 2310.100.40 | ||
| RF2350 | N/A | 2310.100.41 | ||
| RF2350 | EPM mobile transceiver | 2310.100.41 | ||
| RF2050 | EPM mobile transceiver | 2310.100.10 | ||
| RF2050 | EPM mobile transceiver | 2310.100.11 | ||
| RF13250E | N/A | 2310.100.13 | ||
| RF13250S | Mobilní EPM radiostanice | 2310.100.51 | ||
| RX2050 | EPM receiver | 2310.100.81 | ||
| RX2050 | N/A | 2310.100.81 |
