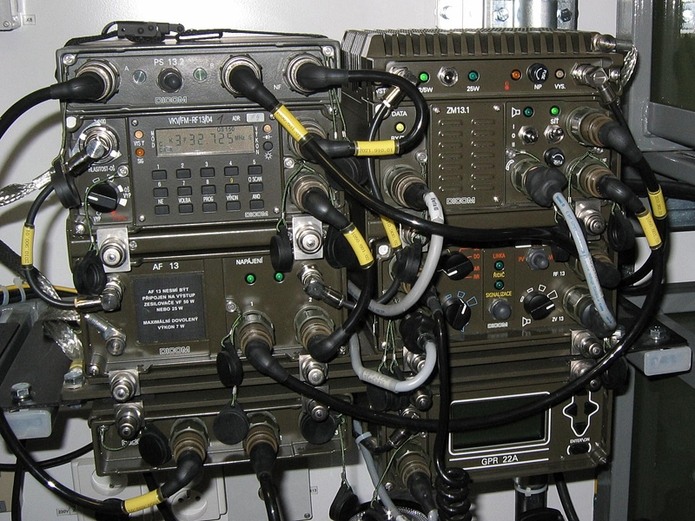

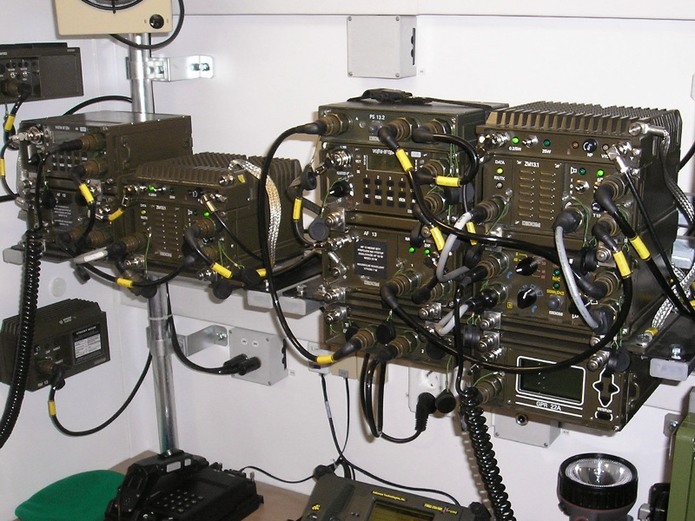

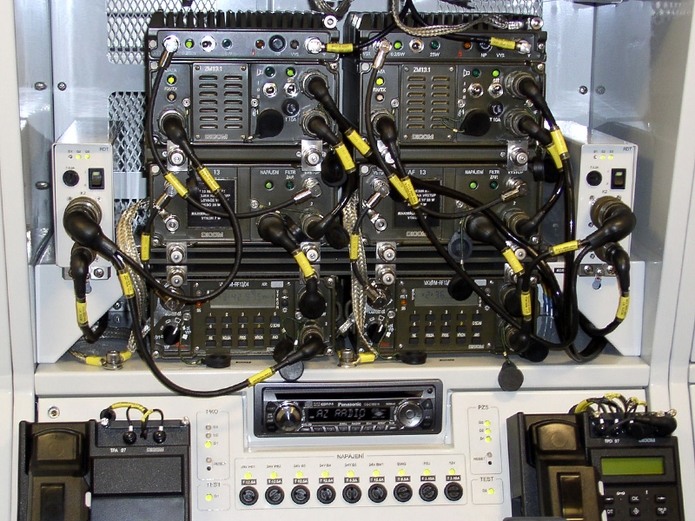

The RF1350 mobile set consists of the RF13 transceiver, ZV13.1 50W amplifier and other accessories according to user needs. All components are interconnected and mounted in a frame.
The mobile set offers all features of the RF13 transceiver. Thanks to the ten-times higher output power of the ZV13.1 amplifier, the transceiver range is greatly increased (normally up to 25 km) and the built-in modem allows data operation.

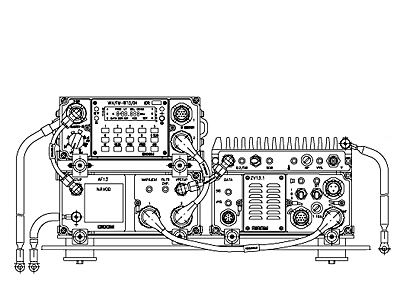

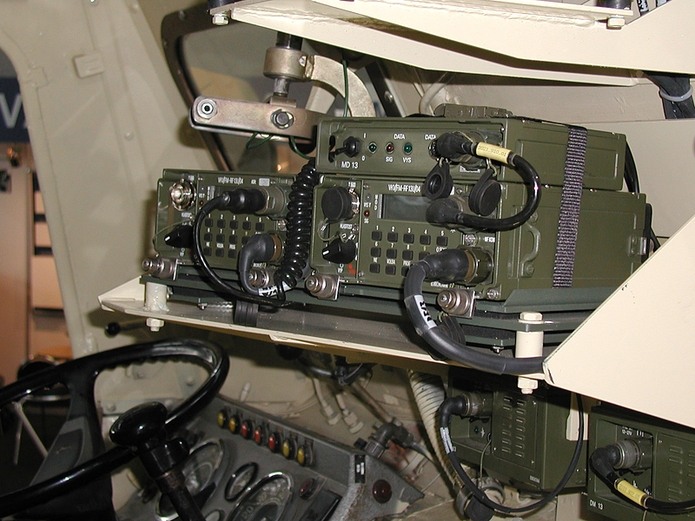

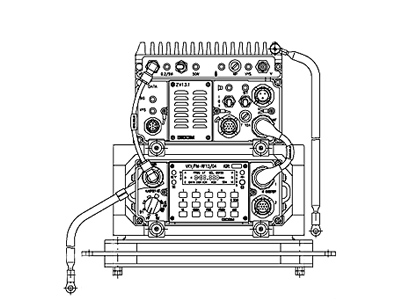

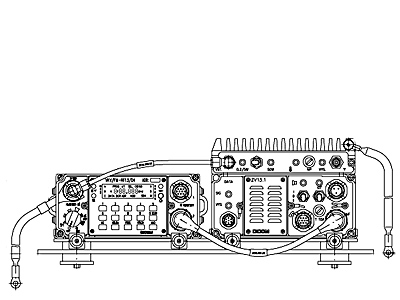

The modular concept allows us to create original variants for various vehicle platforms. The resulting design is influenced by many factors. Firstly, it is necessary to ensure the functionality and manageability of the system. For example, if the vehicle is equipped with another VHF transceiver, choose an assembly with a co-site filter that significantly reduces mutual interference between the transceivers. It is also necessary to take into account the specificities of the spatial structure and mechanical influences at the installation site (vibrations, shocks). All components have standardized dimensions based on the RF13 transceiver module, which also increases the variability of available sets. Frame design allows for quick and easy removal of the transceiver from the assembly and its deployment as a portable transceiver.
