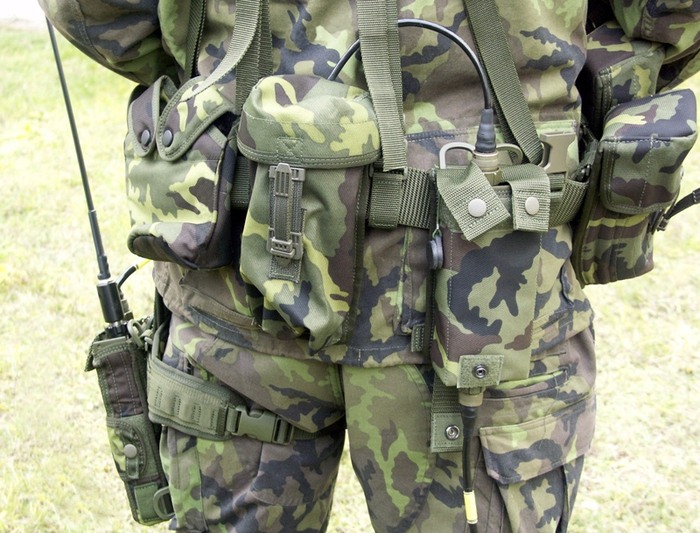

RF20 - Set with modular carrying system elements
Set consists of RF20 EPM handheld transceiver and accessories. The RF20 multiband transceiver with improved resistance to electronic warfare is designated for use at the lowest tactical command levels for all kinds of military units. Depending on the type of selected frequency band, the transceiver is able to communicate in HF band with frequency modulation, with VHF RF13 transceivers, RF2350, RF2050 mobile transceivers and with airborne transceivers in Aircraft band I. For more details on RF20 transceiver and other set components see relevant pages of this website.
| RF20 short operating instructions | 2300.011.02 |
|---|---|
| RF20 operating instructions | 2300.010.02 |
RF20 - EPM handheld transceiver
RF20 EPM handheld multiband transceiver with improved resistance to electronic warfare for use at the tactical command levels for all kinds of military units.
- standard range of functionalities typical for handheld transceivers of RF20 system
LP1302 - Battery pack
Power supply for RF20 radio system transceivers. The battery pack consists of serial-parallel set of four LiIon cells with protective diagnostic circuits, and a capacity display.
- nominal capacity 3.6 Ah
AS1301 - Short tape antenna 0.5 m
Short-distance communication between RF20 or RF1301 transceivers. This antenna can also be used with the RF13 transceiver. The antenna proper...
AL1301 - Long tape antenna 1.1 m
This is a basic type antenna for RF20 or RF1301 transceivers. This antenna can also be used with the RF13...

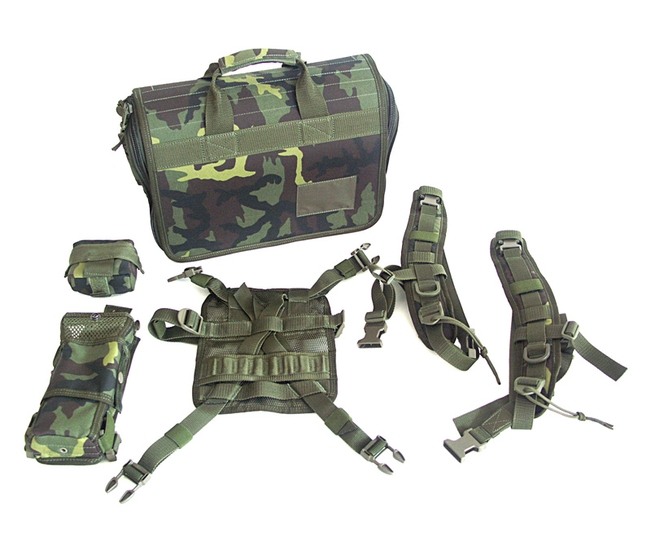

Battery pack case
Combination shoulder straps (left, right)
Transceiver sleeve
Set bag
Carrying harness
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF20 | EPM handheld transceiver | 2300.100.10 | ||
| LP1302 | Battery pack | 7029.100.02 | ||
| AS1301 | Short tape antenna 0.5 m | 2038.100.01 | 0064681101058 | 5985160025492 |
| AL1301 | Long tape antenna 1.1 m | 2037.100.01 | 0064681101236 | 5985160015375 |
| Battery pack case | 6000010103 | |||
| Combination shoulder straps (left, right) | 6000010105 | |||
| Transceiver sleeve | 6000010104 | |||
| Set bag | 6000010100 | |||
| Carrying harness | 6000010101 |
