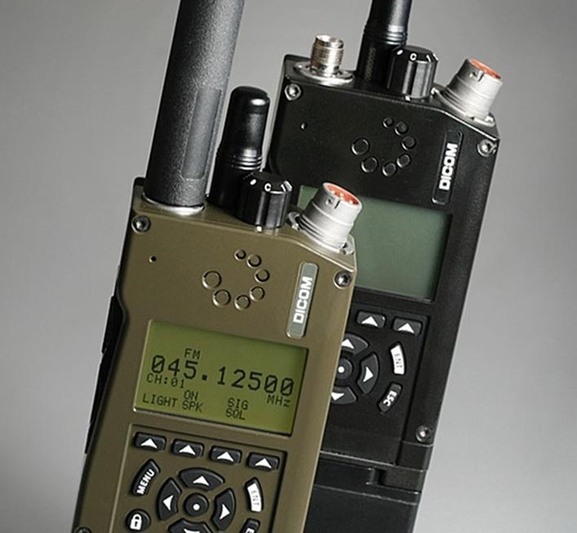

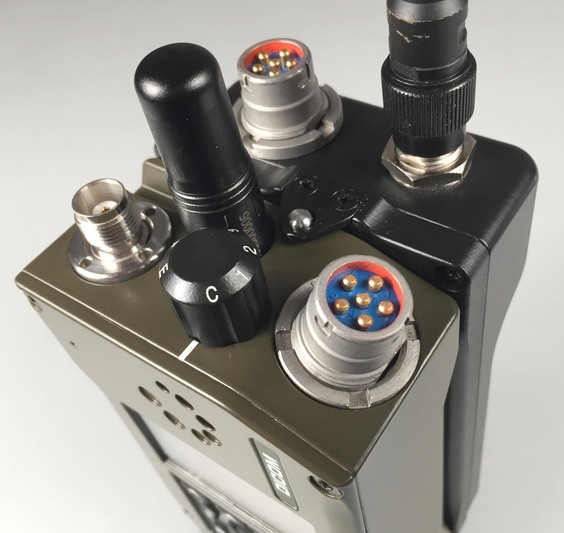

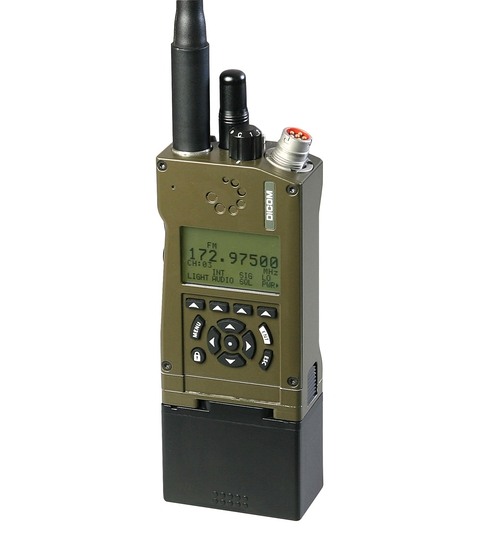

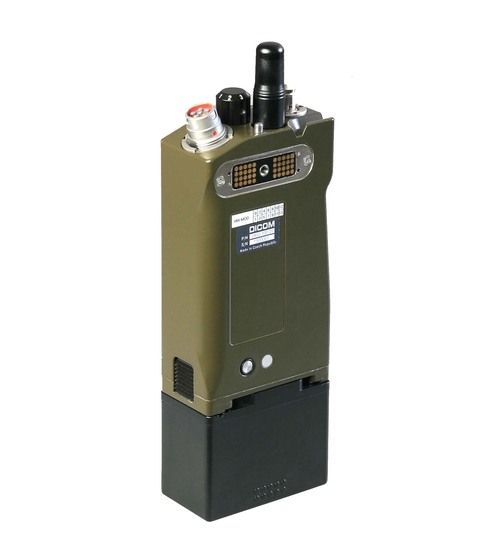

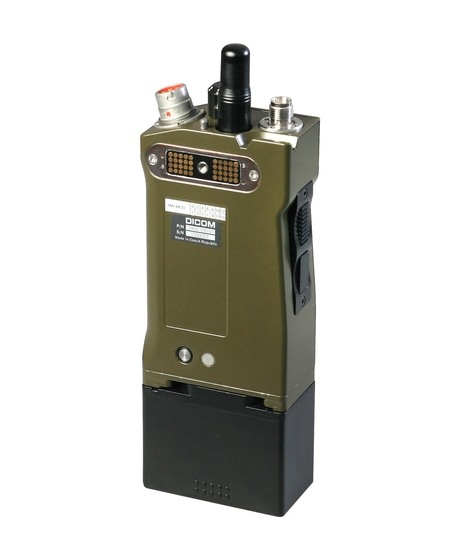

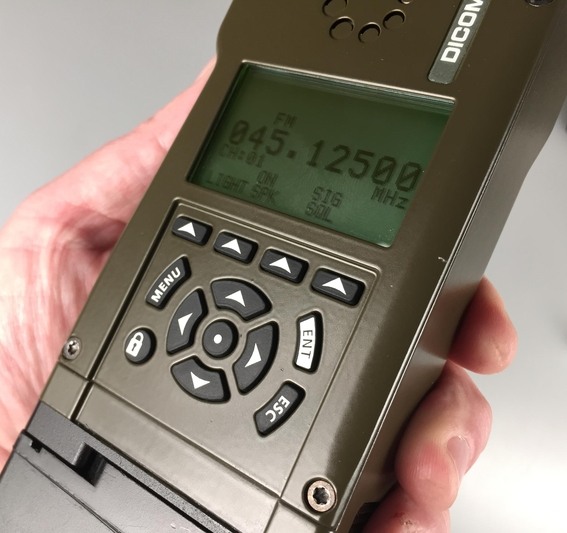

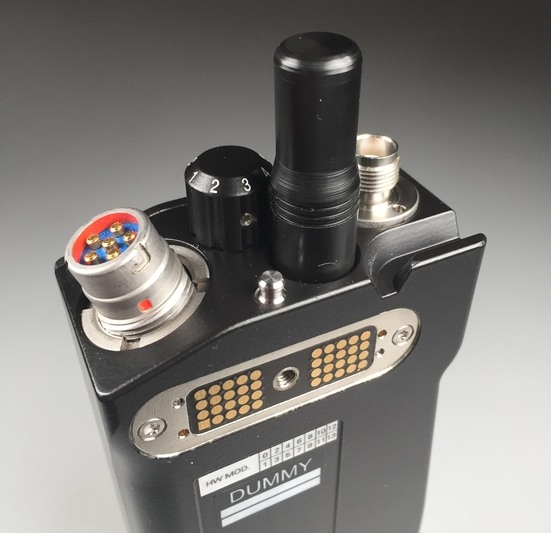

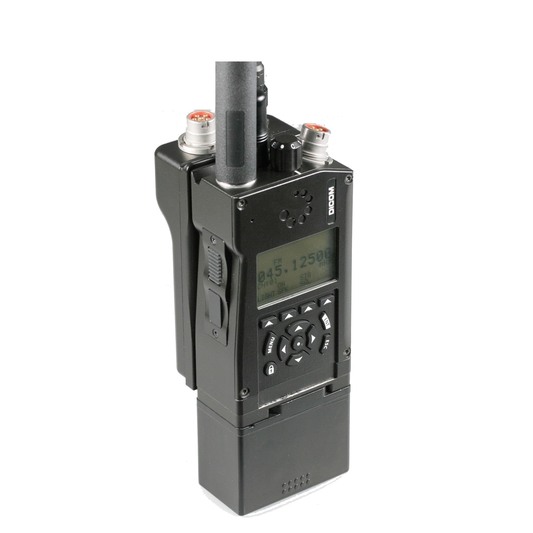

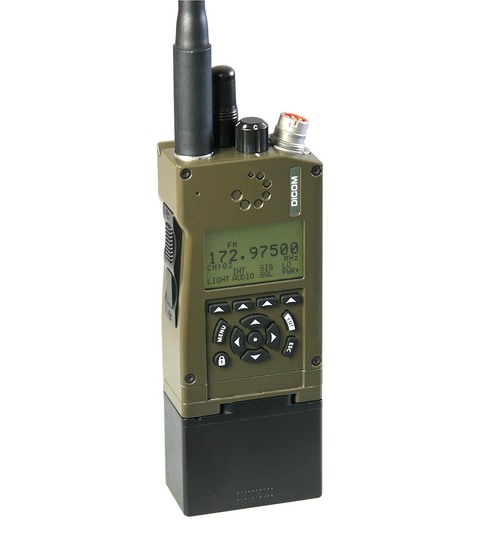

The RF40 Thoroughbred Radio System is a versatile system for secure tactical radio data and voice communication in VHF and UHF bands.

Its main features are:

  • excellent RF parameters
  • efficient utilization of the available frequency spectrum
  • high data rate throughput even in low VHF band
  • voice and data true MANET capabilities
  • dual voice stream with data in one channel
  • second physical radio channel with tactical Ethernet broadband data/voice Mission Module
  • optional SATCOM-on-the-move communication module
  • vehicular amplifier with jerk-and-run capability of the handheld radio

PN (RN): 2400.100.01

• multi-channel radio system
• simultaneous voice and IP data transmissions including video support
• decentralized, auto-forming, true multi-hop MANET network for voice and data
• multiple voice streams in one channel (virtual channels)
• bandwidth saving 250 kHz channel with up to 270 kbit/s data rate in low VHF
• highly secure AES based COMSEC
• native position reporting system (GPS, Galileo, Glonass)
• up to 10 W RF power output (handheld)
• 50 W vehicular amplifier with jerk-and-run support

General
Frequency range 30 - 512 MHz
Modulation FM, AM, CPM
Transmitting power 5 W / 10 W burst
Channel bandwidth 25 kHz, 250 kHz
Waveforms LOS FM/AM (STANAG 4204/4205)
WF40 (V/UHF MANET WF, native IP capable)
HW20 (VHF EPM WF, IP capable via MIL-STD-188-220)
Encryption AES based, key length up to 384 bits
GNSS receiver built-in (GPS/Glonass/Galileo)
Data interfaces Ethernet, USB, Serial
Mechanical, Climatic and EMC
Dimension incl. battery (74 x 202 x 41) mm
Weight incl. battery 0.9 kg
Temperature range -30 °C to +70 °C
MIL-STD-810F low/high temperature, humidity, low pressure, 1 m immersion, icing / freezing rain, salt fog, sand and dust, vibration, shock, bench handling
MIL-STD-461F CE102, CS101, CS114, RE102, RS103
Switch display: Catalog / List
Select group
Sort by

LP40 - Battery

PN (RN): 7400.100.01, 7400.100.02, 7400.100.03, 7400.100.04

LP40 battery is offered in two versions. Optimal battery type choice for a given application depends on the required radio...

SC40 - Stationary charger

PN (RN): 7410.100.01

Designed to charge up to 8 LP40 batteries in both versions. The charger is installed in a watertight plastic case...

PC40 - Simple charger

PN (RN): 7411.100.01

Designed to charge one LP40 battery in both versions. The charger is designed as a network adapter with a cable...

VC40 - Vehicle charger

PN (RN): 7412.100.01

Designed to charge up to two LP40 batteries in both versions. Waterproof and compact charger design ensures high mechanical strength...

FG40 - Fillgun

PN (RN): 2420.100.01

Designed to upload operating data to the RF40 transceiver. The fillgun is designed as a small compact unit equipped with...

MM40WR - Mission module

PN (RN): 2401.100.01

Expansion module easily attachable to the RF40 transceiver or to the VA40 vehicle amplifier (forming one mechanical unit) contains a...

VA40 - Vehicle amplifier

PN (RN): 2410.100.01

The VA40 50 W power amplifier serves as a docking station for RF40 radio vehicular configuration. Besides amplification of RF...

BA40 - Power Adaptor

PN (RN): 7413.100.01

The BA40 Power Adaptor allows RF40 transceiver to be power supplied from Bren-Tronics’s BT-70716BE (5.8 Ah) and BT-70716BG...

Type designation Name PN (RN) KCM NSN
LP40 Battery 7400.100.01, 7400.100.02, 7400.100.03, 7400.100.04
SC40 Stationary charger 7410.100.01
PC40 Simple charger 7411.100.01
VC40 Vehicle charger 7412.100.01
FG40 Fillgun 2420.100.01
MM40WR Mission module 2401.100.01
VA40 Vehicle amplifier 2410.100.01
BA40 Power Adaptor 7413.100.01
