PK23 - Fill gun set

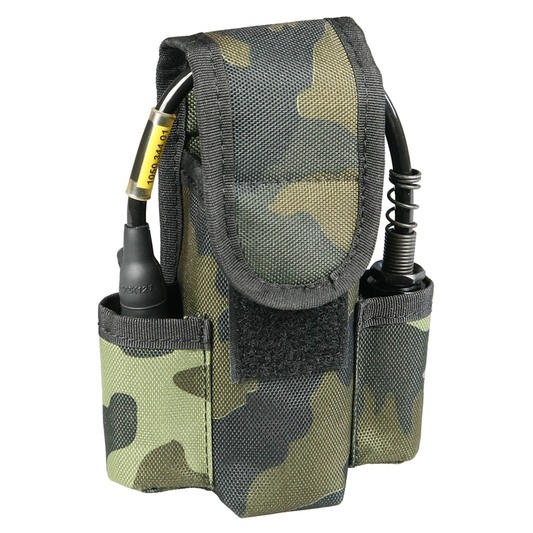

The set is designed for preparation of operational data and filling of RF13 and RF20 radio system transceivers (including RF23) with operational data. The set consists of the PK1302 fill gun and the PK20 configuration software. The set includes a cable connecting the fill gun to RF23 transceivers that are equipped with a U-229-type 6-pin audio connector. The fill gun and the 1050.344.01 connecting cable are stored in the PK23 bag. The configuration program provides complete preparation of operational data using all operation modes of RF13 and RF20 radio system transceivers. The set includes a standard USB cable for transferring data from a PC to the PK1302 fill gun. The cable and the accompanying documents are not stored in the PK23 bag.
| PK20 operating instructions | 2320.010.02 |
|---|
PK1302 - Fill gun
The PK1302 is a hardware component of PK20 set. The set is used for operation data programming of the RF13...
CD with PK20 SW
Interconnection cable
Bag
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| PK1302 | Fill gun | 2320.100.01 | 0067100047551 | 5820160049722 |
| CD with PK20 SW | 2320.300.01 | |||
| USB cable | 5061030101 | 0067100047568 | 5995160049714 | |
| Interconnection cable | 1050.344.01 | |||
| Bag | 6000010017 |
