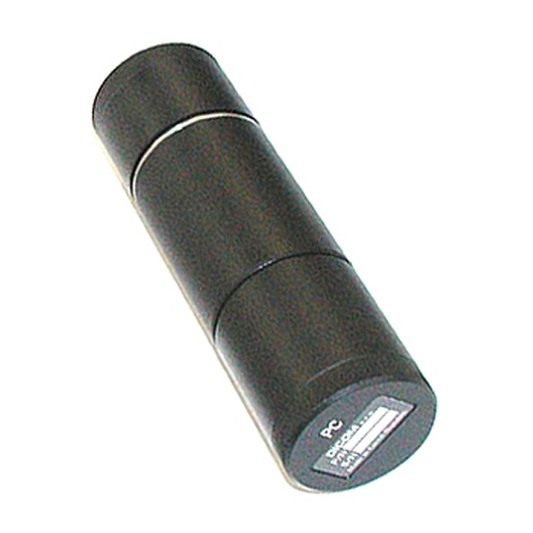

PK1302 - Fill gun
The PK1302 is a hardware component of PK20 set. The set is used for operation data programming of the RF13, RF1301 and RF20 transceivers.
PN (RN): 2320.100.01
KCM: 0067100047551
NSN: 5820160049722
| Data transfer into the fill gun | from PC via USB (software is included with the set) |
|---|---|
| Data transfer from the fill gun to transceiver | through connection of the fill gun connector to the transceiver´s connector |
| Data items for fixed frequencies: | |
| transceiver operating mode A, B or C (the modes have different extents of channel programming); | |
| quantity and numbers of pre-set channels (1 to 9); | |
| frequencies of pre-set channels; | |
| simplex or semiduplex operation selection; | |
| choice between open and encrypted voice, selective call, squelch type; | |
| priority channel number; | |
| codes for internal encryption unit - group or individual channels. | |
| Data items for frequency hopping operation: | |
| names and numbers of radio nets for hopping operation (60 nets); | |
| radio net hopsets; | |
| HLC frequencies (hailing channel frequency); | |
| HLG frequency (general hailing frequency); | |
| TRANSEC radio net keys; | |
| COMSEC radio net keys. | |
| Hardware component parameters | |
| Operating temperature range | -30 °C to +60 °C |
| Dimensions | diameter 39.5 mm x 131 mm |
| Weight | 0.25 kg |
| PK20 operating instructions | 2320.010.02 |
|---|
PK20 - Fill gun set
PN (RN): 2320.000.02
The set is used for operation data programming of the RF13 (including RF1301) and RF20 transceivers. The set consists of...
PK23 - Fill gun set
PN (RN): 2320.000.42
The set is designed for preparation of operational data and filling of RF13 and RF20 radio system transceivers (including RF23...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| PK20 | Fill gun set | 2320.000.02 | ||
| PK23 | Fill gun set | 2320.000.42 |
