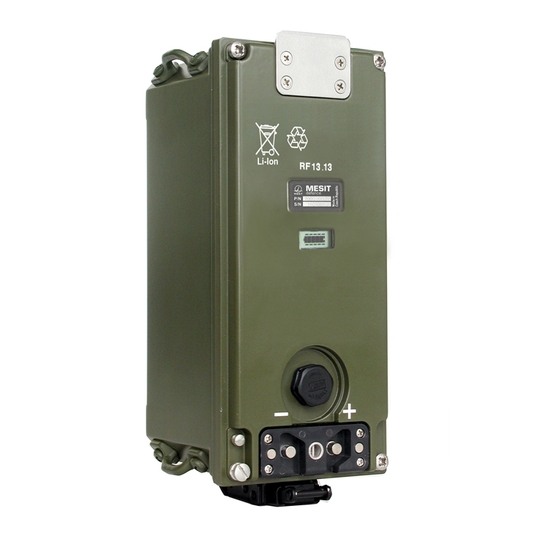

RF13.13 - Rechargeable battery pack
Power supply for RF13 portable transceiver. It contains a set of LiIon batteries in serial-parallel connection with protective and diagnostic circuits and a display showing their capacity. Protective circuits protect the battery pack cells and ensure compatibility with RF13.1 battery pack chargers. Diagnostic circuits use two-wire bus communication between the battery pack and the charger to display the battery pack charging parameters on the charger display.
PN (RN): 7000.100.22
| Jmenovité napětí | 14,4 V |
|---|---|
| Kapacita (C) | 9 Ah |
| Konečné nabíjecí napětí | max. 16,8 V |
| Nabíjecí proud | max. 5 A |
| Doba nabíjení z RN13.1, RM13 | max. 5 h |
| Doba nabíjení z NU13 | max. 7 h |
| Rozsah pracovních teplot | -30 °C až +60 °C |
| Rozsah nabíjecích teplot | 0 °C až +50 °C |
| Rozměry [š x v x h] | 196 mm x 80 mm x 84 mm |
| Hmotnost | 2 kg |
NU13 - Universal charger set
PN (RN): 7024.000.01
Set consists of NU13 universal charger and accessories. The charger features charging, charging with preliminary discharging, the measuring of battery...
NJ13.1 - Small mains charger set
PN (RN): 7025.000.11
Set consists of NJ13.1 small mains charger and accessories. The charger is used to charge a single RF13.13...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| NU13 | Universal charger set | 7024.000.01 | ||
| NJ13.1 | Small mains charger set | 7025.000.11 |
