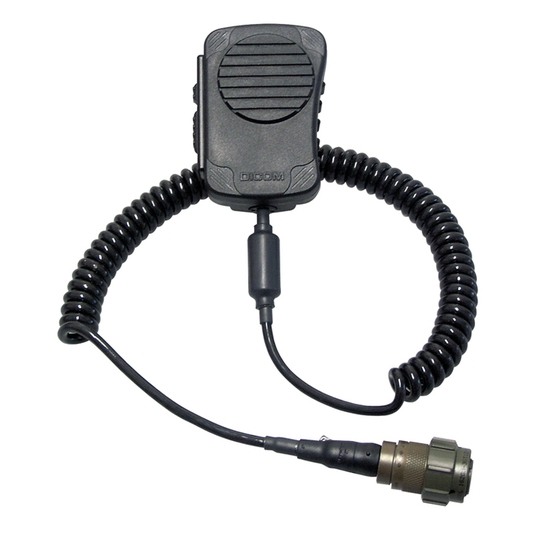

RM1301 - Handheld microphone/speaker
The handheld microphone/speaker make it possible to operate the basic transceiver set and the mobile set without the necessity to have the transceiver in near proximity. This unit contains a PTT button and the button for sending of 1 kHz radio call. It can be used with the transceiver on the operator’s back. The unit is connected to the transceiver by a spiral cable and a connector.
PN (RN): 2009.100.01
KCM: 0064332001036
NSN: 5965160024751
| Napájecí napětí | 6,5 V až 15 V |
|---|---|
| Modulační napětí do radiostanice | 100 mV/2 kΩ |
| Impedance reproduktoru | 8 Ω |
| Maximální odebíraný proud | 20 mA |
| Tónová výzva: | |
| • modulační napětí | 100 mV |
| • kmitočet | (1 000 ± 200) Hz |
| Rozsah pracovních teplot. | -30 °C až +60 °C |
| Hmotnost | 0,3 kg |
