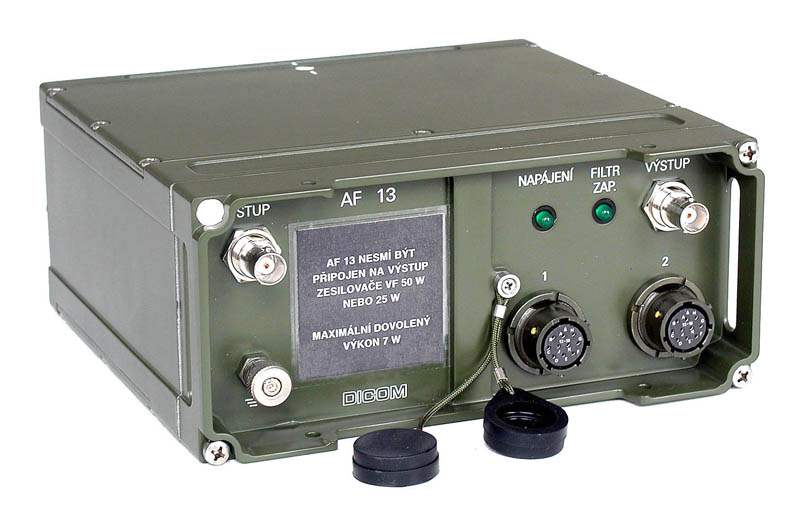

The AF13 filter decreases mutual interference between two VHF transceivers operating with antennas close to each other, for instance, in one vehicle. The filter is used between the RF13 transceiver and the ZV13.1, ZM13.1 amplifier with a mobile or stationary­ antenna. The filter allows simplex and half duplex communication between transceivers. If the filter is turned off then signal can pass through bidirectionally without filtering.

PN (RN): 2028.100.02
KCM: 0064241004021
NSN: 5895160038170
Frequency range 30.00 MHz to 87.975 MHz
Maximal transmitter output power 7 W
Nominal impedance 50 Ω
Insertion loss 3 dB
Maximum retuning time 50 ms
Filter selectivity limits maximal noise spectrum density for frequencies with offset from carrier frequency exceeding 10% 140 dBm/Hz
Output and input resistance with AMPHENOL connectors to short-circuit and disconnection
Resistance to electromagnetic field in acc. with IEC 801-3, level 70 V/m
Resistance to electrostatic discharge in acc. with IEC 801-2, min. class 3
Nominal power supply voltage 12 V
Power supply voltage range 9.5 V to 15 V
Constant current consumption max. 60 mA
RF signal connection coaxial cables with BNC connectors
Power supply and control signal connection multi-core cable with AMPHENOL connectors
Operating temperature range -30 °C to +60 °C
Dimensions W 185 mm x H 83 mm x D 175 mm
Weight max. 2 kg
AF13 operating instructions 2028.010.02
