ZB13 - Battery pack tester

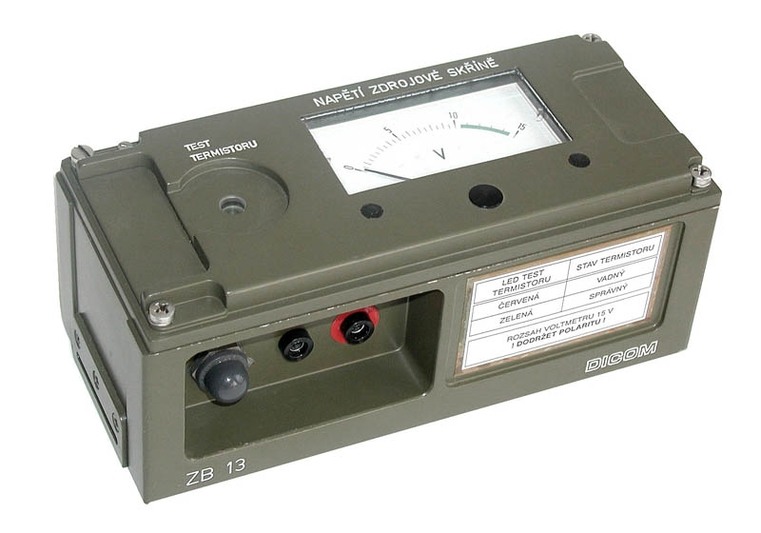

The battery pack tester is used for quick testing of RF13.1 battery packs. It slides easily on the tested pack and is turned on by lightly pressing the right side of ZB13. The device indicates the condition of the battery pack thermistor and the no-load voltage of the battery. After pressing the TEST button, the load voltage of the battery is established. The tester can also be used as a voltmeter with 15 V range.
PN (RN): 7009.100.02
KCM: 0064241004362
NSN: 6625160043817
| Measurement accuracy | ± 0.25 V |
|---|---|
| Voltage range of RF13.1 battery pack indicated by green field | lower limit 10.5 V, upper limit 14.5 V |
| RF13.1 battery pack load current | 4 A ± 0.4 A |
| Safe TEST button pressing time | max. 60 sec |
| Tested thermistor resistance | correct value > 1430 Ω and < 81900 Ω |
incorrect value > 100 Ω and < 1170 Ω |
|
| Tested voltage range | 0 V to 15 V |
| Dimensions | W 185 mm x H 77 mm x D 82 mm |
| Weight | max. 1.0 kg |
| ZB13 operating instructions | 7009.010.02 |
|---|
ZB13 - Battery pack tester set
PN (RN): 7009.000.02
KČM: 0064241004689
NSN: 6625160043818
Set consists of ZB13 battery pack tester and accessories. The battery pack tester is used for quick testing of RF13...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| ZB13 | Battery pack tester set | 7009.000.02 | 0064241004689 | 6625160043818 |
