Telescopic winch driven mast 10 m

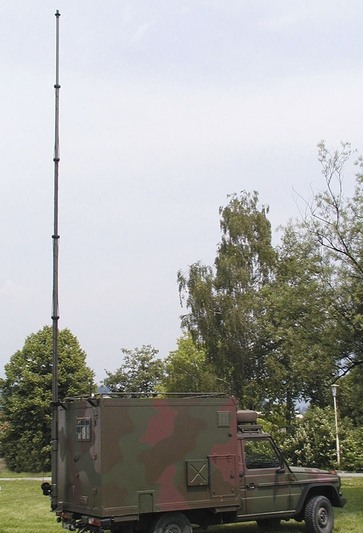

The mast is designed for field use or for installation in vehicles. It serves as antenna carrier for RF13 transceiver sets in field. Mast sections are produced from composition materials. The mast is equipped with a special winch for easy pulling the mast out and in with the antenna installed. The position of the winch is adjustable: the first winch position is used for pulling the mast out in free field; the second position is used for pulling out the mast mounted on a vehicle.
PN (RN): 2036.100.70
KCM: 0064681500217
NSN: 5985160039124
| Height of erected mast with the extension tube | 10 m |
|---|---|
| Extension tube length | 0.5 m |
| Height of the mast when pulled in | 2.3 m |
| Bottom section diameter | 105 mm |
| Max. vertical top load | max. 25 kg |
| Wind resistance | max. 120 km/h |
| Guy radius | 7 m |
| Number of sections | 6 |
| Storage temperature range | -45 °C to +70 °C |
| Mast weight | 21.5 kg |
| Accessories weight | 24 kg |
