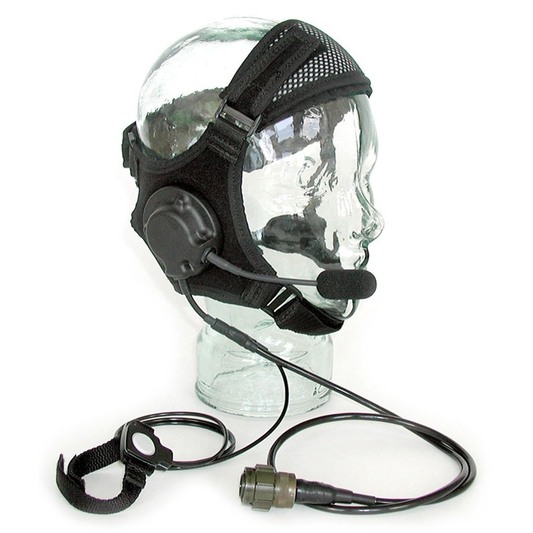

The headset is designed for the situations when the RF13 or RF20, RF1301 operator is in need of free hands for other activities. It can be worn for long periods of time and works with a helmet or a protective mask on the operator. The gradient microphone works even in a very noisy environment.

PN (RN): 2023.100.61
KCM: 0064334000686
NSN: 5965160038958
Power supply from transceiver connector
Supply voltage 6.5 V to 15 V
Modulation voltage to the transceiver 100 mV/2 kΩ
Nominal output signal level from the transceiver 1.3 V/100 Ω
Power consumption 0.5 W
Maximum current consumption 30 mA
Microphone gradient electret
Operating temperature range -30 °C to +60 °C
Weight 0.31 kg
RF13.51/RF13.52 operating instructions 2023.010.62
