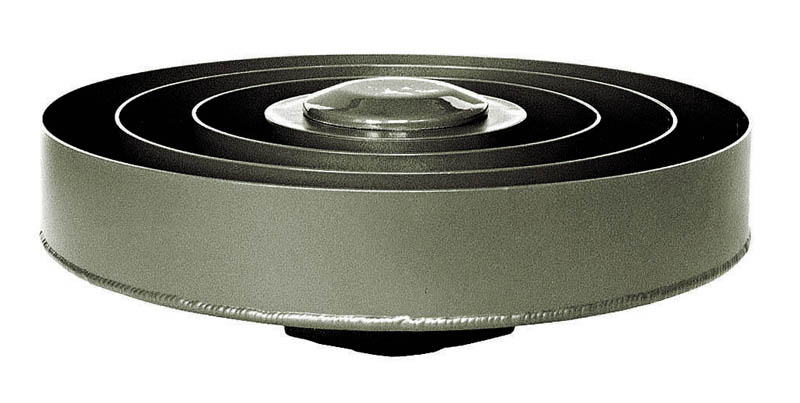

GPA24 - Satellite navigation antenna (with choke ring)
This antenna can be installed in fixed locations. Antenna consists of a GPA24 satellite navigation antenna and a choke ring. Choke ring provides to GPA24 antenna high immunity to both RFI and multipath effects especially in the undulated terrain.
PN (RN): 2042.100.80
KCM: 0064681101281
NSN: 5985160020273
| Radiator | microstrip with circular right-handed polarization |
|---|---|
| Nominal frequency | 1575.42 MHz |
| Impedance | 50 Ω |
| VSWR | max. 3 |
| Power supply voltage | 3.3 V to 12 V |
| Output connector | BNC |
| Operating temperature range | -30 °C to +60 °C |
| Dimensions | diameter 362 mm x 134 mm |
| Weight | 3 kg |
| GPA24, GPA25 operating instructions | 2042.010.02 |
|---|
GPA24 - Satellite navigation antenna (with choke ring) set
PN (RN): 2042.000.80
Set consists of GPA24 antenna with choke ring and documentation. For basic operation no other components are required. This antenna...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| GPA24 | Satellite navigation antenna (with choke ring) set | 2042.000.80 |
