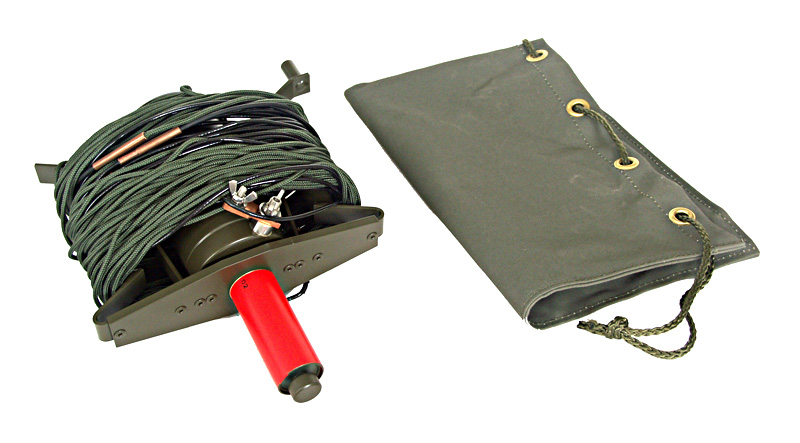

AK503 - Antenna
The antenna is designed for stationary application. It is erected and packed up in a short time. It occupies very small room during transportation.
PN (RN): 2120.600.02
KCM: 0064685103508
NSN: 5985160038179
Frequency range | 1.5 MHz to 30 MHz |
---|---|
Power rating | 150 W |
Operating modes | |
- Mode 1 (•) | 1.5 MHz to 26 MHz, recommended operating range 1.5 MHz to 6 MHz |
- Mode 2 (••) | 1.5 MHz to 30 MHz, recommended operating range 6 MHz to 30 MHz |
- Mode 3 (•••) | 1.5 MHz to 30 MHz, for ground-wave communications, and distances of more than 2000 km |
Mode selection | by clamp terminals, on pattern-shaping network |
Installation time | 1 person, approx. 10 minutes |
Operating temperatures | -40 °C to +55 °C |
Weight | 4 kg |
