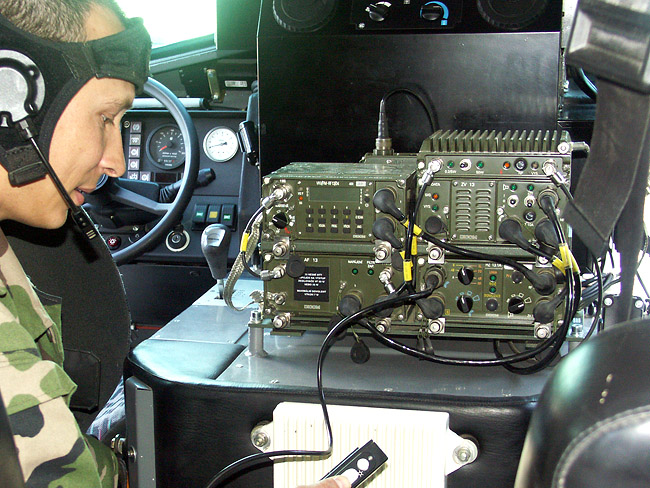

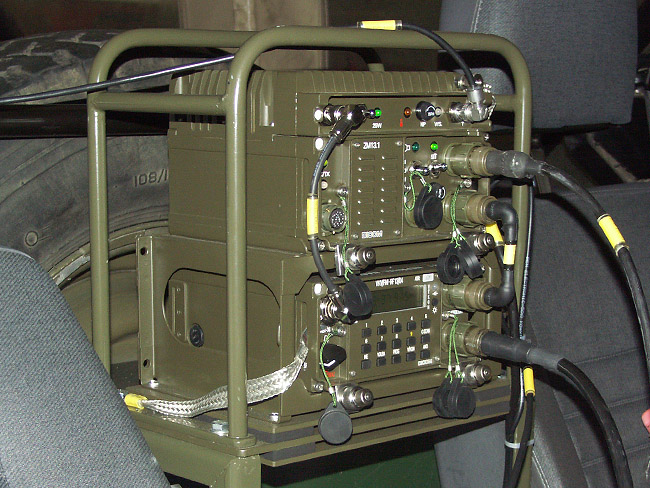

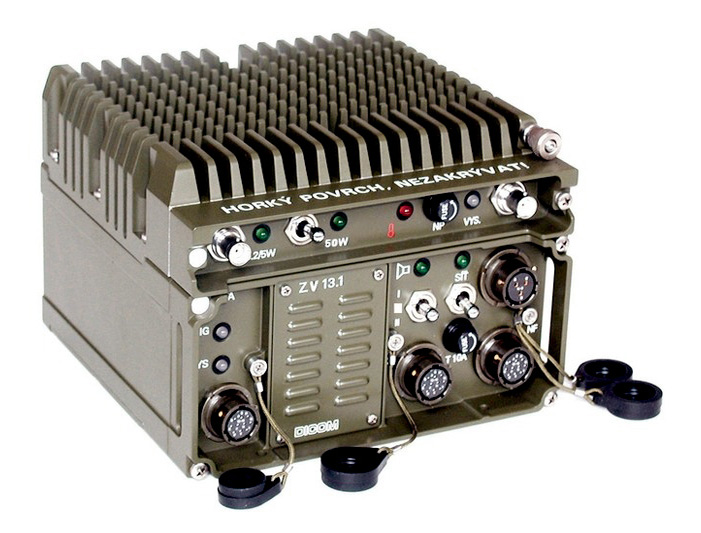

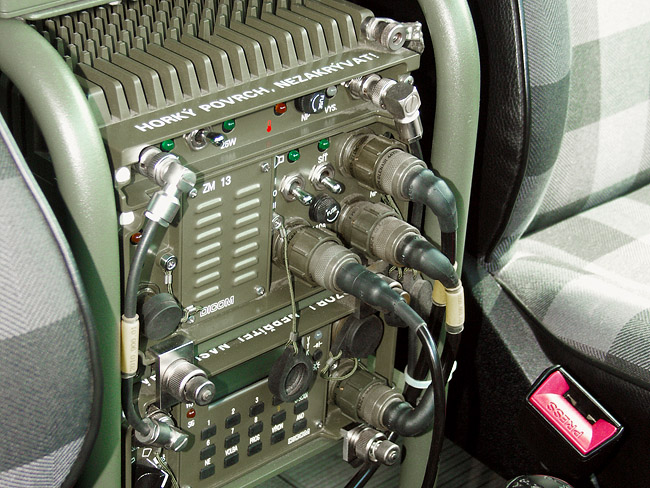

RF power amplifier for RF13 transceivers. ZV13.1 amplifier includes a high speed data modem with GMSK modulation and 16 kbit/s data bit rate in RF channel. This modem is fully compatible with MD13.1 radio modem and it can be configured in two SW versions: network (Net) or direct line (P2P). The amplifier is installed with the RF13 transceiver and together they form the mobile set. The unit is installed in a mounting frame.

PN (RN): 2011.100.54
Power supply voltage 27 V
Power supply voltage range 18 V to 33 V
RF output power 50 W/50 Ω
AF output power 1 W/6 Ω
Frequency range 30 MHz to 88 MHz
Nominal output impedance 50 Ω
Interface RS232C
Data transmission rate 16 kbit/s
Operating time in the mode of continuous transmission at the normal conditions unlimited, at the temperature +50 °C 30 minutes
Operating temperature range -30 °C to +60 °C
Dimensions W 184 mm x H 128 mm x D 175 mm
Weight max. 3.9 kg
