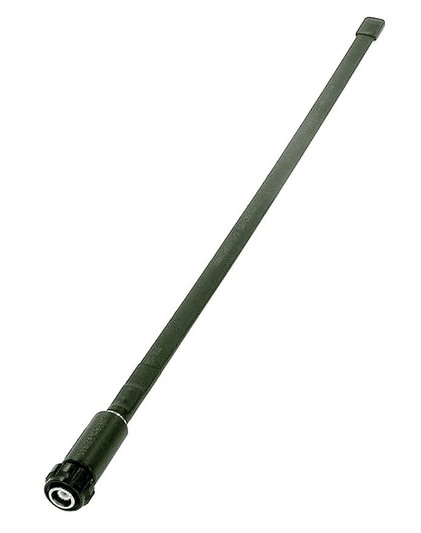

AS1301 - Short tape antenna 0.5 m
Short-distance communication between RF20 or RF1301 transceivers. This antenna can also be used with the RF13 transceiver. The antenna proper consists of a flexible steel tape, covered by a plastic sleeve. The steel tape makes it possible to bend the antenna at any point, the minimum bending radius is 1 cm. The antenna is electrically connected to the transceiver via a BNC connector, mechanical resistance is secured by a screw joint on the transceiver and a cap nut on the antenna. This proved method ensures a high mechanical resistance during motion on terrain and in case of a possible falling of the transceiver. The design of the antenna makes it possible to fold it to the length of 0.25 m.
PN (RN): 2038.100.01
KCM: 0064681101058
NSN: 5985160025492
| Kmitočtový rozsah | 25 MHz až 146 MHz |
|---|---|
| Impedance | 50 Ω |
| PSV | max. 6 |
| Výkonová zatížitelnost | do 5 W |
| Vyzařovací diagram | všesměrový |
| Rozsah pracovních teplot | -30 °C až +60 °C |
| Délka prutu | 0,45 m |
| Hmotnost | 0,12 kg |
