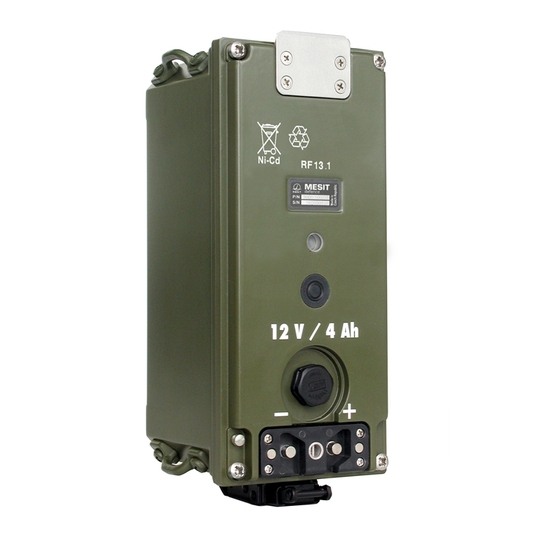

RF13.1 - Rechargeable battery pack
Battery pack for portable RF13 VHF transceiver. It contains a compact quick-charge NiCd batteries pack. The box contains an electronic battery test circuit. Battery voltage is tested by pressing the button and is indicated. The box is mechanically connected to the device fed with one quick release joint. Automatic electric interconnection is provided with the help of rugged spring contacts. The box is made of aluminium casting and its construction is waterproof.
| Nominal voltage | 12 V |
|---|---|
| Capacity (C) | 4 Ah |
| Standard charging | (14 to 16) hrs, 0.4 C current |
| Fast charging | 1 h (from the RN13.1 and NU13 quick chargers) |
| Service life | min. 500 cycles |
| Operating temperature range | -30 °C to +60 °C |
| Dimensions | W 196 mm x H 80 mm x D 84 mm |
| Weight | max. 2.5 kg |
| RF13.1 operating instructions | 7000.010.02 |
|---|
RF13.1 - Rechargeable battery pack set
Set consists of RF13.1 battery pack and documentation. For basic operation no other components are required. RF13.1 is...
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RF13.1 | Rechargeable battery pack set | 7000.000.02 |
RM13 - Mobile quick charger set
Set consists of RM13 mobile quick charger and accessories. It is used for quick charging of the RF13.1 rechargeable...
NM13 - Mobile charger
Set consists of NM13 mobile charger and documentation. For basic operation no other components are required. The charger is used...
DM13 - Mobile extension set
RN13.1 - Quick battery charger set
NS13 - Standard battery charger set
Set consists of NS13 standard battery charger, mains connection cable and documentation. For basic operation no other components are required...
NU13 - Universal charger set
NK13 - Trickle charger set
| Type designation | Name | PN (RN) | KCM | NSN |
|---|---|---|---|---|
| RM13 | Mobile quick charger set | 7014.000.02 | 0299012000414 | 6130160018774 |
| NM13 | Mobile charger | 7004.000.02 | 0299012006917 | 6130160022119 |
| DM13 | Mobile extension set | 7005.000.11 | 0299012008184 | 6130160028066 |
| RN13.1 | Quick battery charger set | 7001.000.11 | 0299012009776 | 6130160034833 |
| NS13 | Standard battery charger set | 7003.000.01 | 0299012010792 | 6130160037709 |
| NU13 | Universal charger set | 7024.000.01 | ||
| NK13 | Trickle charger set | 7002.000.01 | 0068600200031 | 6130160022128 |
