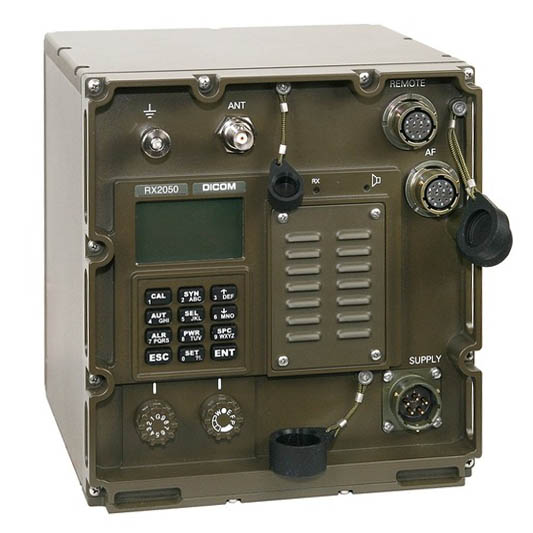

RX2050 - EPM receiver
RX2050 receiver is a device intended for installation in mobile devices. It ensures reception of RF signals from transceivers operating in 25 MHz to 146 MHz fixed frequency band. Transceiver modulation in 30 MHz to 108 MHz band meets the requirements of STANAG 4204 standard. In other bands, the receiver is capable of receiving signals from RF2050 or other transceivers that are compatible with the RF2050 in terms of modulation at these frequencies. The RX2050 receiver also receives signals in frequency hopping mode and it is fully compatible with the RF2050 and RF20 transceiver modes. The receiver includes an effective co-site filter that allows simultaneous operation of the RX2050 receiver with RF2050 transceivers in a single vehicle in 30 MHz to 90 MHz operating band. The condition of compatible operation is the distance between recommended vehicle antenna types of at least 1.5 m and receiving and transmitting frequencies differing by at least 10 %. The RX2050 receiver is not designed for data transmission.
a) in all operation modes
• built-in test equipment (BITE) with error indication on the transceiver display;
• operating data programming from external equipment;
• emergency erasure of operating data on fixed frequency channels including encryption unit codes and information for FH networks, including TRANSEC and COMSEC;
• switching on/off of acoustic signaling by transceiver operators;
• backlit display and keypad;
• adjustable display contrast;
• operating channel signal reception signaling by a LED on the transceiver panel;
• whisper mode with reduced audio frequency output power;
• received signal loud monitoring with volume regulation and LED monitor signaling;
• service information display – firmware;
• remote receiver control via REMOTE connector and RS232 or RS485 communication link and PRC20 protocol;
• simple control.
b) in fixed frequency operation
• up to 10 channel presents from the entire 25 MHz to 145.9875 MHz frequency range, number of preset channels is reduced when occupied by FH networks;
• simplex reception;
• 150 Hz sub-tone squelch or signal squelch (only signal in VHF II);
• reception via built-in encryption unit compatible with RF13, RF20, RF2050;
• reception of short coded messages – FLASH with opposite transceiver identification;
• keypad channel programming;
• fixed frequency channel preset scanning;
• operating frequency setting in 6.25 kHz. 8.33 kHz, 25 kHz or 1 MHz steps.
c) in FH operation
• up to 6 network presets;
• operation in 30.000 MHz to 87.975 MHz frequency range;
• secured TRANSEC operation and encrypted COMSEC operation;
• compatible with RF20, RF2050, RF23 and RF2350 transceivers;
• HLC, HLG and 121.500 MHz (HLA) frequency monitoring;
• optional frequency hopping operating modes – FH, DFF, FCS and MIX with quick transition to HLC, HLG or HLA reception;
• reception of alert message to all network users;
• reception of selective communication from MASTER transceiver;
• reception of short text messages (maximum 156 characters);
• INTERLEAVING switching off for close-to-the-limits communication.
| BASIC SPECIFICATION | |
|---|---|
| Operating frequency | 25 MHz to 145.9875 MHz |
| Nominal input impedance | 50 Ω |
| Frequency sub-bands | |
| HF | 25 MHz to 29.975 MHz |
| VHF I | 30 MHz to 108 MHz |
| VHF II | 117.975 to 140 MHz |
| VHF III | 140.025 to 145.9875 MHz |
| Type of received modulation | |
| HF | F3E (FM) |
| VHF I | F3E (FM) |
| VHF II | A3E (AM) |
| VHF III | F3E (FM) |
| Channel spacing | |
| HF | 25 kHz |
| VHF I | 25 kHz; 12.5 kHz; 6.25 kHz |
| VHF II | 25 kHz; 8.33 kHz |
| VHF III | 25 kHz; 12.5 kHz |
| Number of operating channels for 25 kHz channel spacing | |
| HF | 200 |
| VHF I | 3121 |
| VHF II | 882 |
| VHF III | 239 |
| Number of preset channels | up to 10 |
| Number of frequency-hopping channels | up to 6 |
| RECEIVER SPECIFICATIONS | |
| Receiver sensitivity | |
| 25 MHz to 29,975 MHz | 0.6 μV |
| 30 MHz to 90 MHz | 0.7 μV |
| 90.00625 MHz to 108 MHz | 0.5 μV |
| 117.975 MHz to 140 MHz | 0.5 μV |
| 140.025 MHz to 145.9875 MHz | 0.5 μV |
| Dynamic two-signal selectivity for adjacent channel | min. 57 dB |
| Suppression of intermediate frequencies | min. 80 dB |
| Suppression of image-channel frequencies | min. 60 dB |
| Suppression of spurious receptions at > 10 % detuning from operating frequency | min. 70 dB |
| AUDIO FREQUENCY OUTPUT SPECIFICATIONS | |
| Range of effectively transmitted frequencies | |
| narrow band audio | 300 Hz to 3000 Hz |
| wide band audio | 20 Hz to 11000 Hz |
| Audio frequency levels on AF connector | |
| narrow band audio | min. 200 mW, adjustable level up to 8 Ω |
| narrow band audio | min. 775 mV, constant level up to 600 Ω |
| wide band audio | 1000 mV, constant level up to 600 Ω |
| Acoustic pressure of the built-in speaker | min. 85 dB at maximum volume |
| Non-linear distortion factor | up to 10 % |
| POWER SUPPLY SPECIFICATIONS | |
| Nominal supply voltage | 12 V or 24 V |
| Limit supply voltage range | 10 V to 33 V |
| Maximum consumption | 0.625 A at 24 V |
| 1.25 A at 12 V | |
| Consumption during synchronization hold | up to 0.015 A from 24 V backup supply |
| SPECIAL OPERATION MODES SPECIFICATIONS | |
| Range of operating frequencies in FH modes | 30 MHz to 87.975 MHz |
| Number of monitored frequencies in FH modes | 3 (two programmable, third 121.5 MHz) |
| Frequency hopping modes | |
| FH | secure frequency hopping |
| DFF | secure digital fixed frequency |
| FCS | secure free channel search |
| MIX | mix mode FH + FCS |
| Time to initial synchronization | up to 5 s |
| Synchronization hold | 48 hours |
| Synchronization hold with disconnected power supply | 50 s |
| Minimum number of operation frequencies in FH mode | 1 |
| Hopping rate | 100 hops/s |
| MECHANICAL SPECIFICATIONS | |
| Maximum dimensions | 184 mm x 196 mm x 175 mm [w x h x d] |
| Maximum weight | up to 6.5 kg |
| Resistances | |
| Operating temperature | -40° C to +70 °C |
| Mechanical and climatic resistance | according to MIL-STD-810E |
| EMC immunity | according to MIL-STD-461E |
| Mains power immunity | according to MIL-STD-1275B |
| RX2050 operating instructions | 2310.010.81 |
|---|---|
| RF2050 short operating instructions | 2310.011.12 |
