STM-7/6-123 - Antenna mast

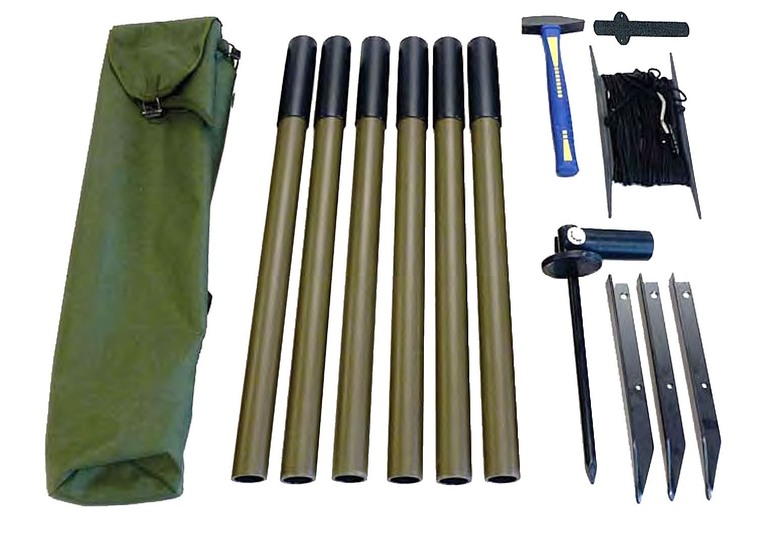

The STM-7/6-123 is a lightweight manportable/manpack sectionalized tubular mast intended for use with lightweight antennas. Mast sections are made of composite material (fiberglass) with aluminium joints and painted with the 2 component UV resistant PU paint. All ground mounting accessories are included in the strong canvas carrying bag. The mast STM-7/6-135 is composed of 6 tubular sections each 135 cm long, composing mast height of 7.35 meters.
PN (RN): 6000001412
| Erected mast height | 7.35 m |
|---|---|
| Mast weight | 8.9 kg |
| Top load | up to 4 kg |
| Number of sections | 6 |
| Section diameter | 43 mm |
| Section top hole | 35 mm |
| Section weight | 0.9 kg |
| Section lenght | 1.315 m |

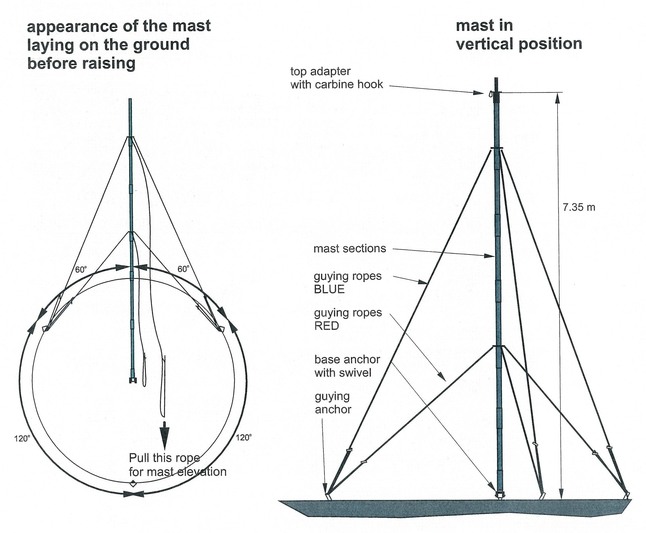

| Number of guying levels | 2 |
| Number of guys | 3 |
| Mounting area diameter | 6 m |
| Mast setup time | 5 min. (1 operator) |
| Carrying bag size | (1400 x 200 x 200) mm |
| Operating temperature | -55 °C to +70 °C |
